Transspeed FLW
The interior door for escape routes
The Transspeed FLW high-speed roller shutter door is a special interior door for escape routes and has been “escape route approved” and “type tested” by TÜV Süd.
The escape route is monitored by a safe radar detector, and the emergency opening height is checked in a emergency opening height is checked in a cyclical test (every 24 hours).
Approval in accordance with DIBT building regulations as the sole escape route is possible after a one-off test by an expert.
Product features
- Opening speed up to 2.0 m/s
- Door size up to 4.0 m x 4.0 m
- Weight equalisation
- Large selection of colours
- Escape route authorisation
- Automatic opening in the event of a power failure
- Emergency route monitoring
The special features

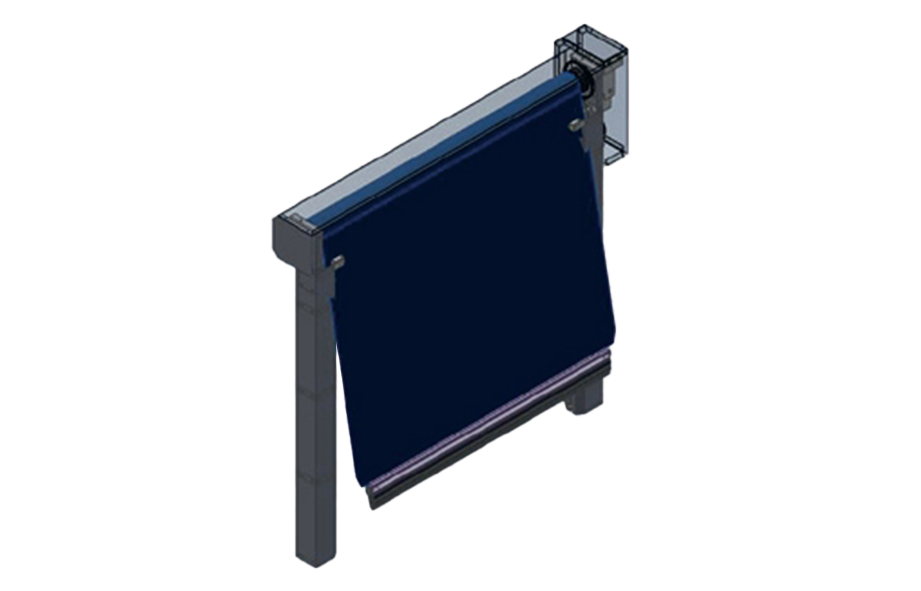

Crash

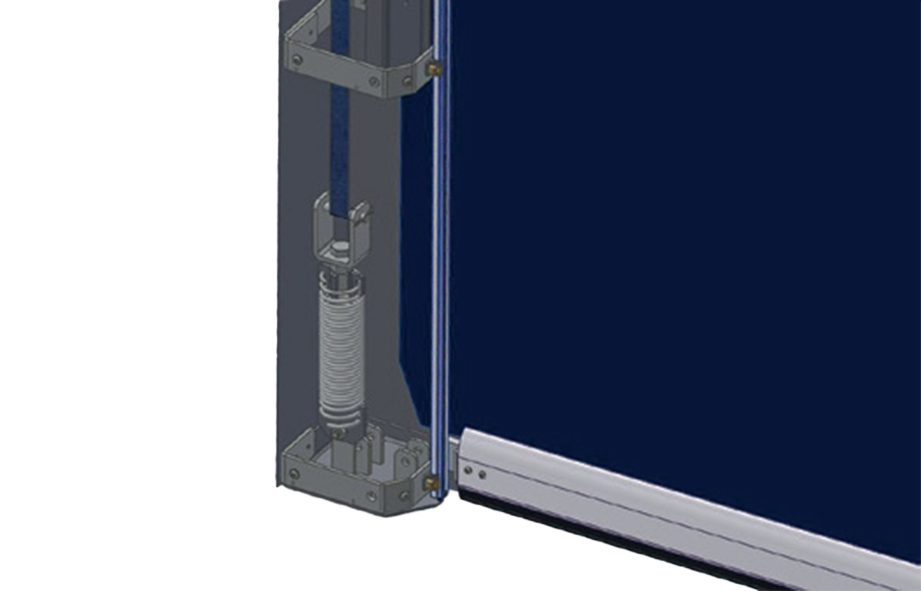

Weight equalisation

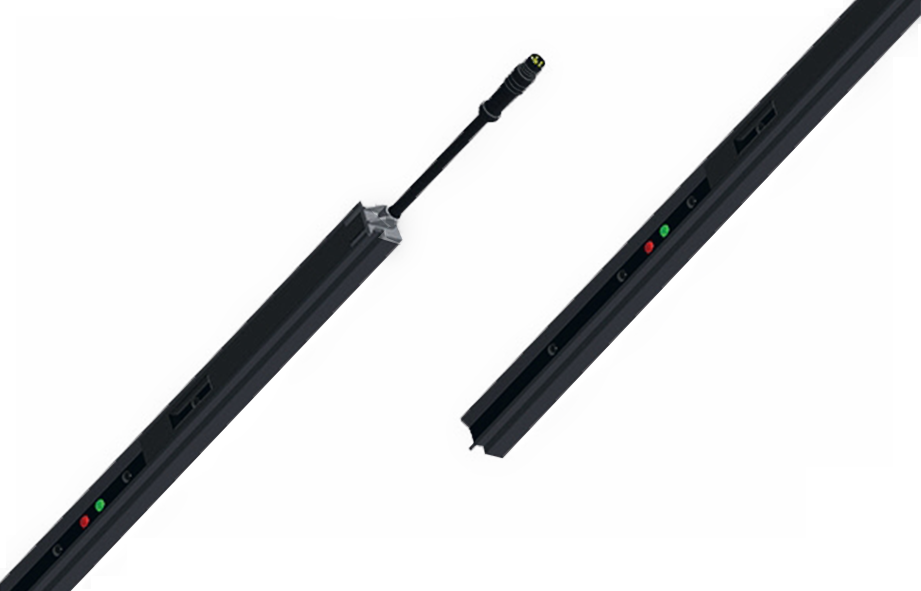

Light grid

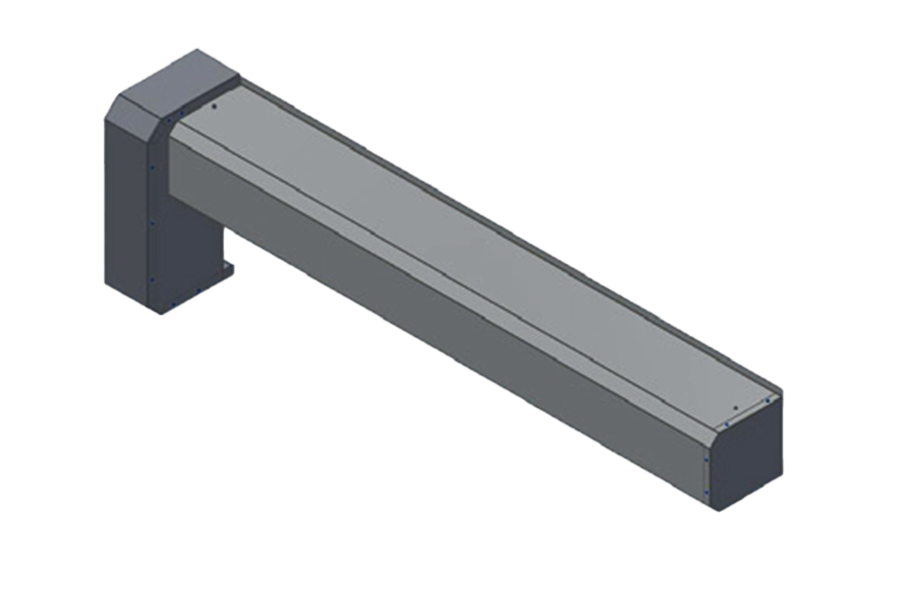

Bale and drive panelling
Technical details
Size range
- Width (LDB) max.
- 4.000 mm
- Height (LDH) max.
- 4.000 mm
Special dimensions on request
Drive speed
Frequency-controlled drive
- Opening max.
- 2,0 m/s
- Closing max.
- 0,8 m/s
Control unit
- DR2100
Hanging

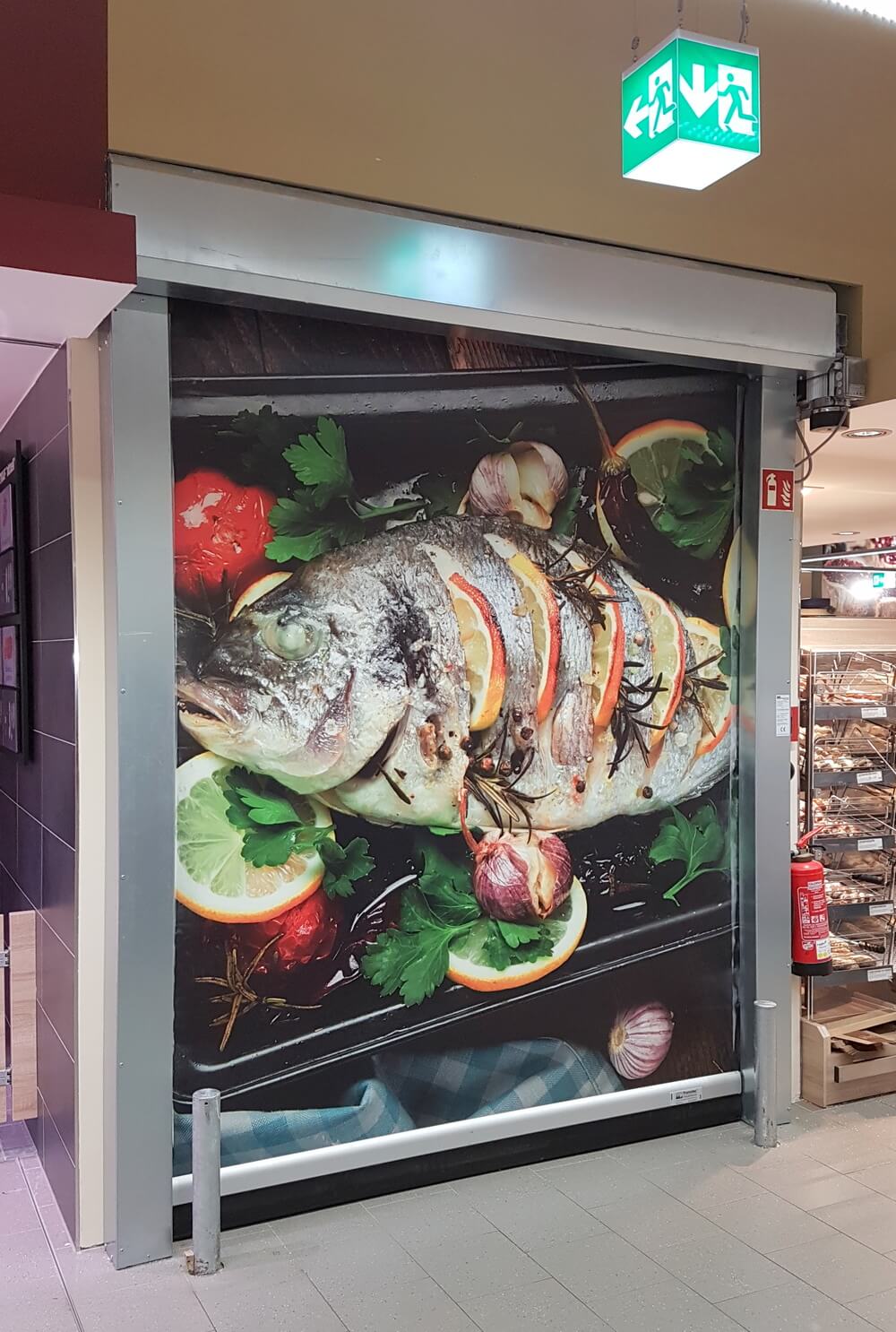

- available in various colors or fully printed with motifs
Power rating
- 230 V/50Hz, IP54 Drive
