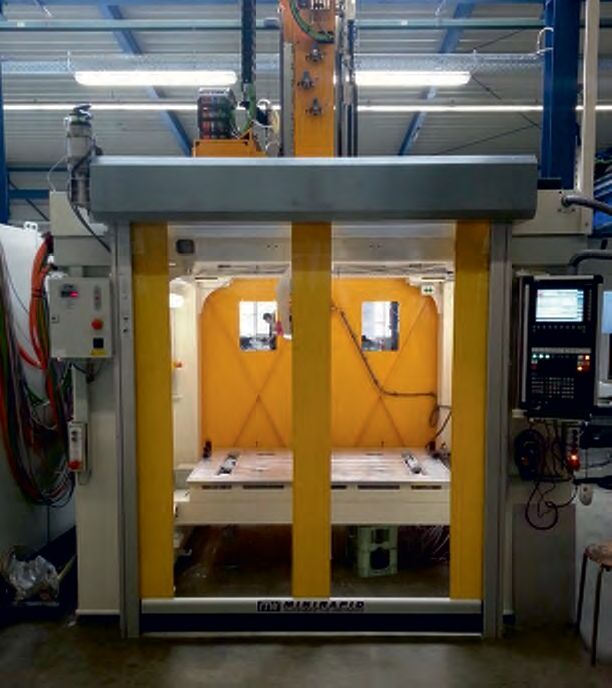

Pro-Tec-TOR 344ms
Robust and flexible - the door for large openings
The high-speed roller shutter with an approx. 3 mm thick fabric curtain is vertical, fast opening and closing. The permanent curtain tension ensures safe and smooth door
smooth door operation.
Hinged track boxes enable easy cleaning and maintenance even in dusty conditions.
The Transrapid is held in place by the integrated internal spring steel wind pressure locks
with ball-bearing-mounted, double-pair rollers, withstands wind loads up to class 3.
The Transrapid is therefore also suitable as an external door.
The special features

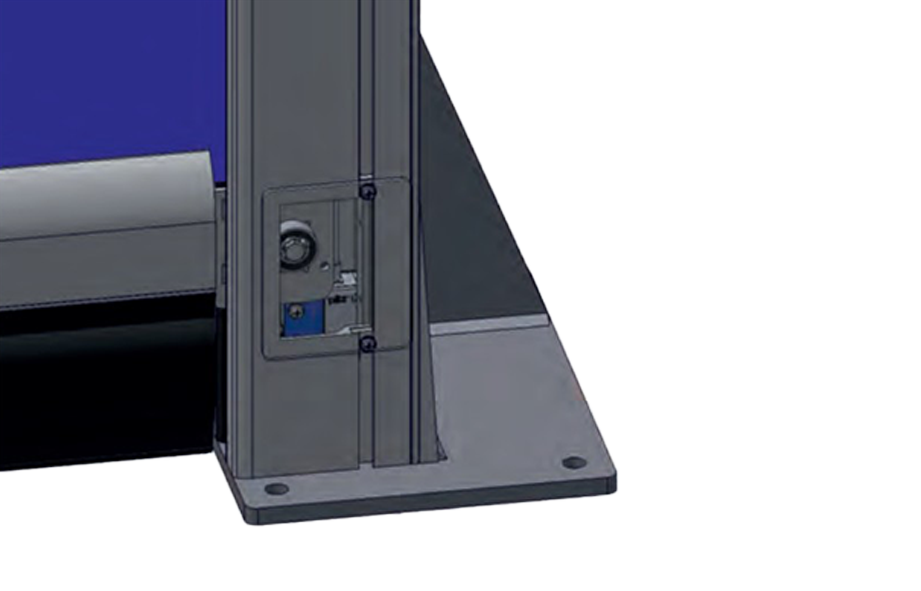

Safety sensors integrated in the
safety sensors report the
the door position
Technical data
Gate sizes
- Width max.
- 4000 mm
- Height max.
- 4000 mm
Control system
- DR2100 microprocessor control unit with main switch
Speed
Drive controlled by frequency inverter
- Opening speed max.
- 2,0 m/s
- Closing speed max.
- 0,8 m/s
Emergency opening
- Emergency hand crank
- Optional: Emergency hand chain
Hanging
- PVC-coated fabric incl. viewing window
Hanging colours
- RAL 1018 Zinc yellow
- RAL 2004 Pure orange
- RAL 3002 Carmine red
- RAL 5010 Gentian blue
- RAL 7038 Agate grey
Optional versions
- PVC approx. 3 mm thick with 2 fabric inserts
- Viewing window incorporated in the fabric curtain
- Welding protection incorporated into the fabric cover
- PVC transparent with coloured fabric strips
Resistance to wind load (EN 12424)
- Class 1 up to 30 km/h
