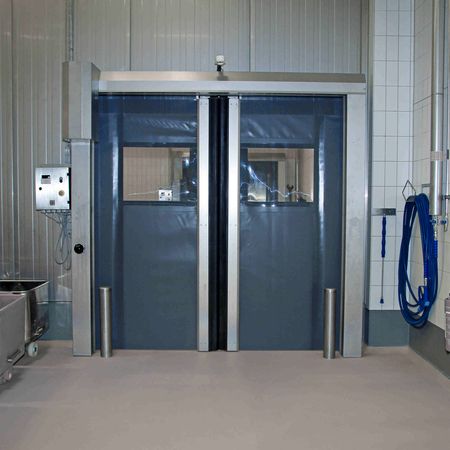

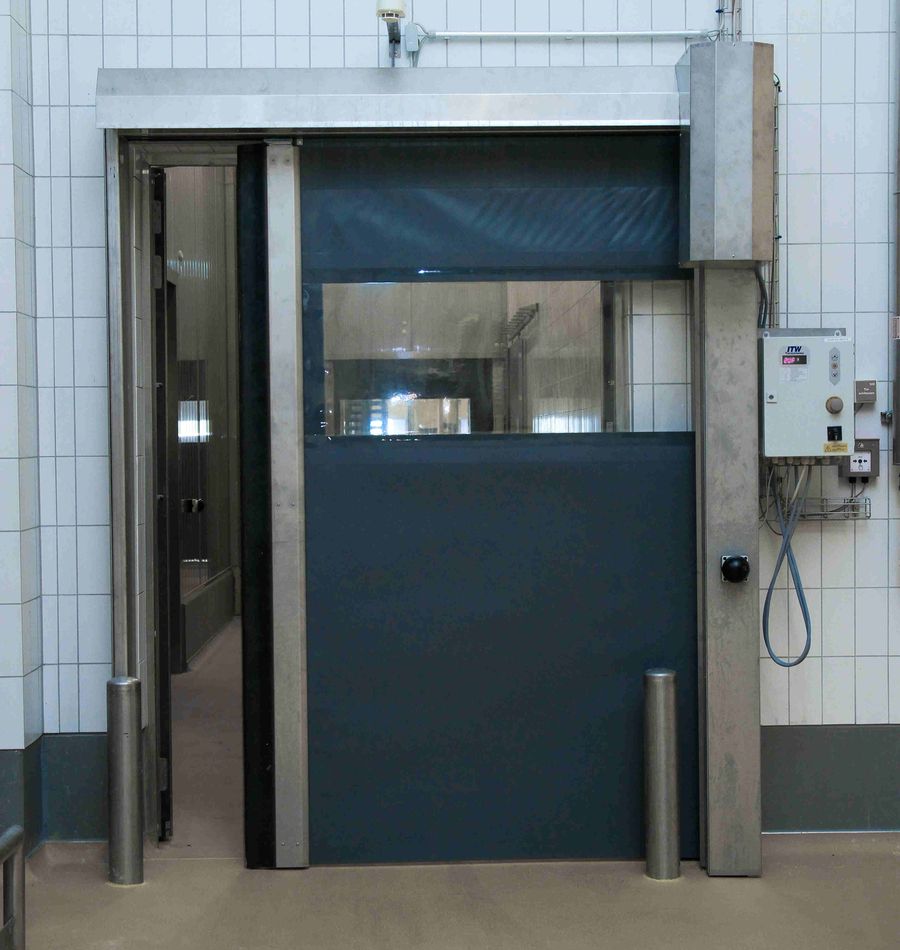

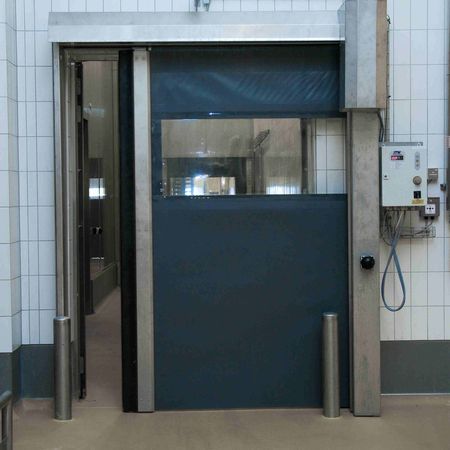

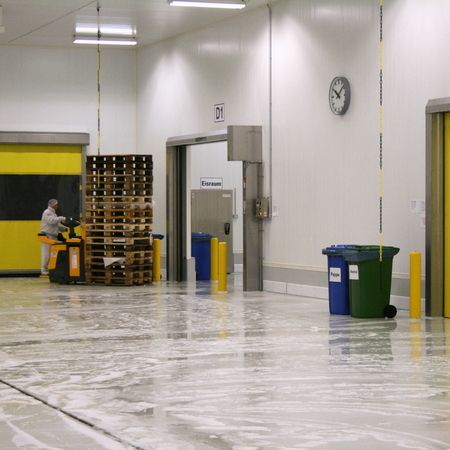

Transsprint S
Immediately full Clearance
The lateral opening of the gate wings enables the immediate provision of the complete gate height and thus ensures fast and safe traffic of goods. This guarantees a trouble-free and safe trafficflow and prevents long interruption times.

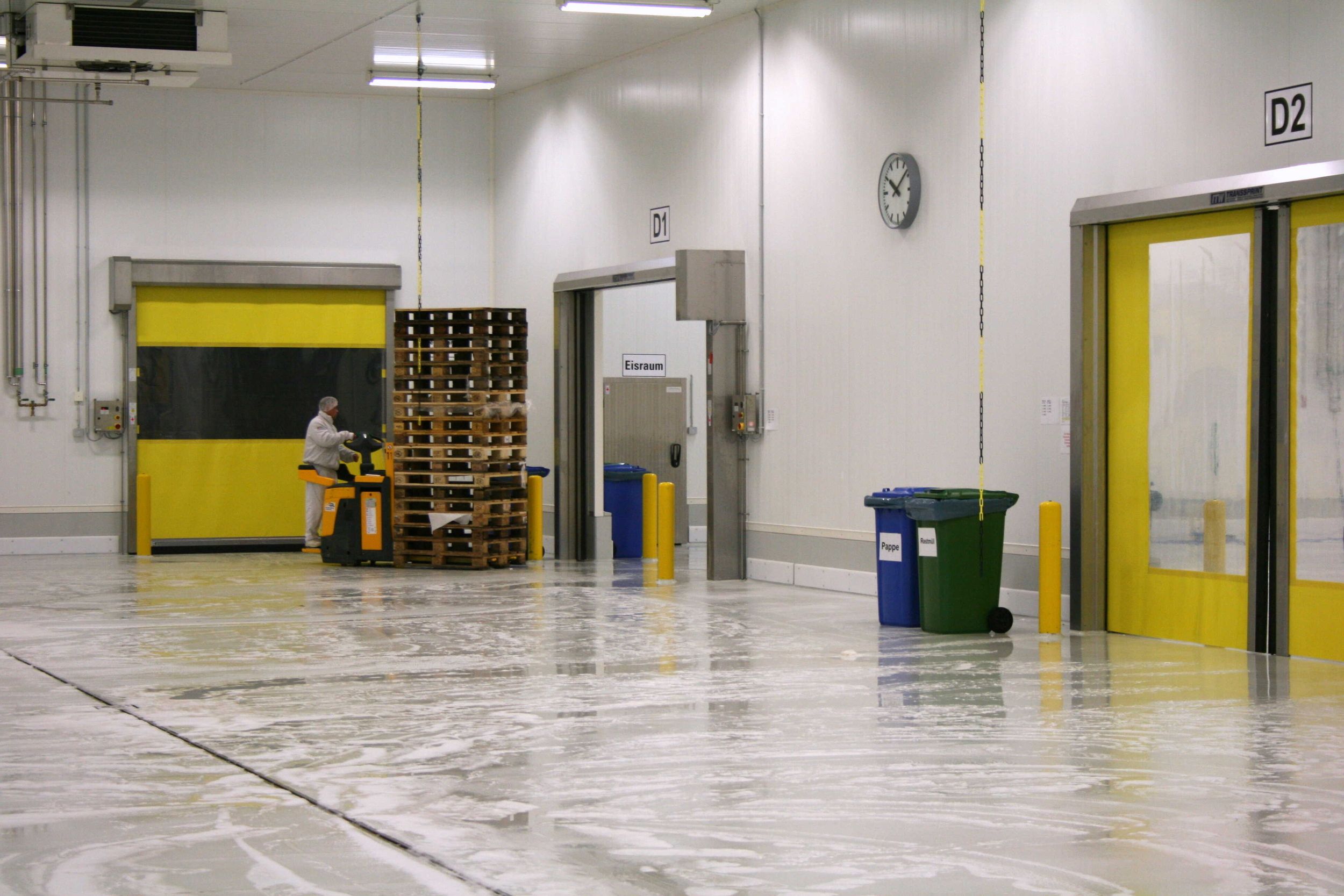

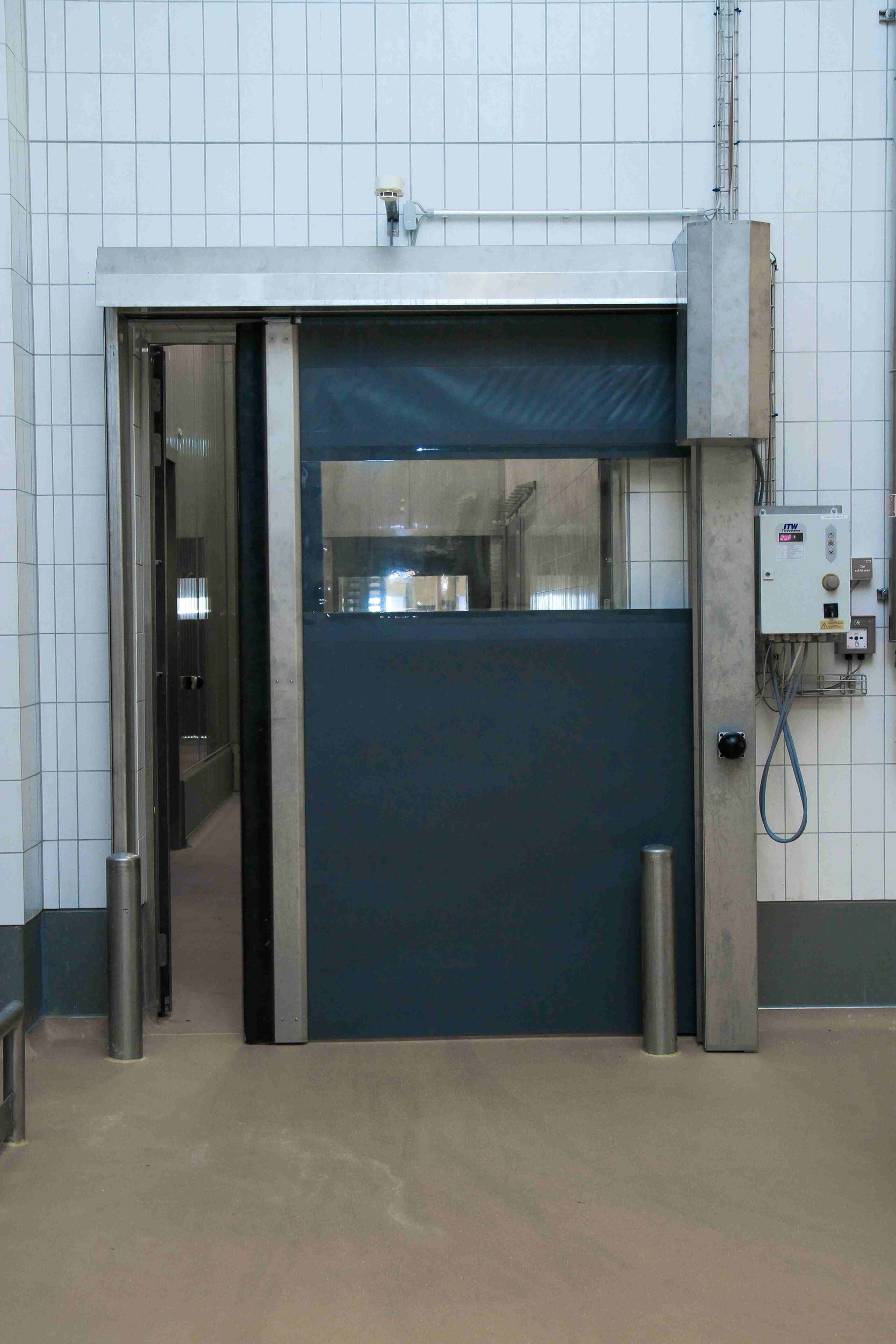

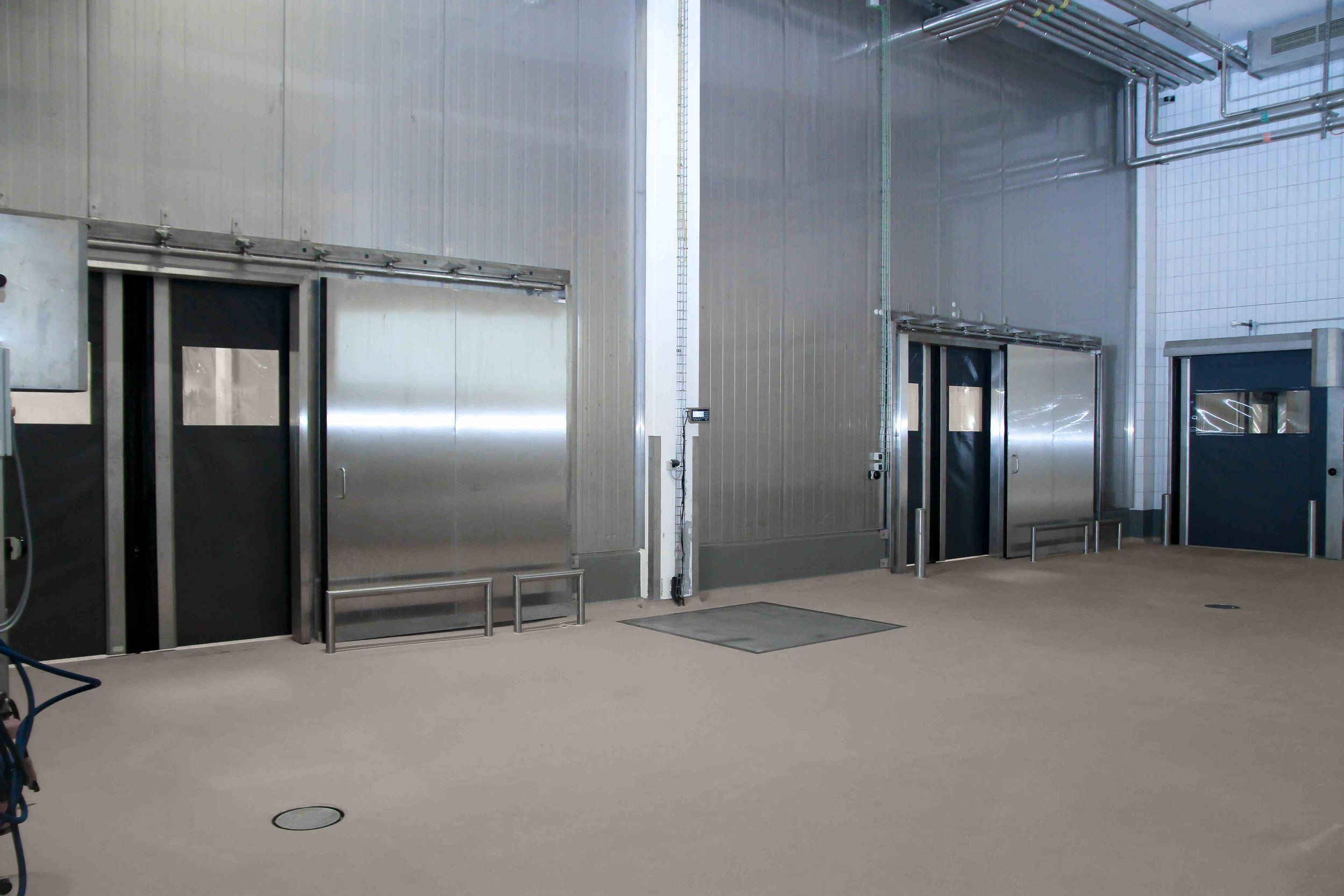

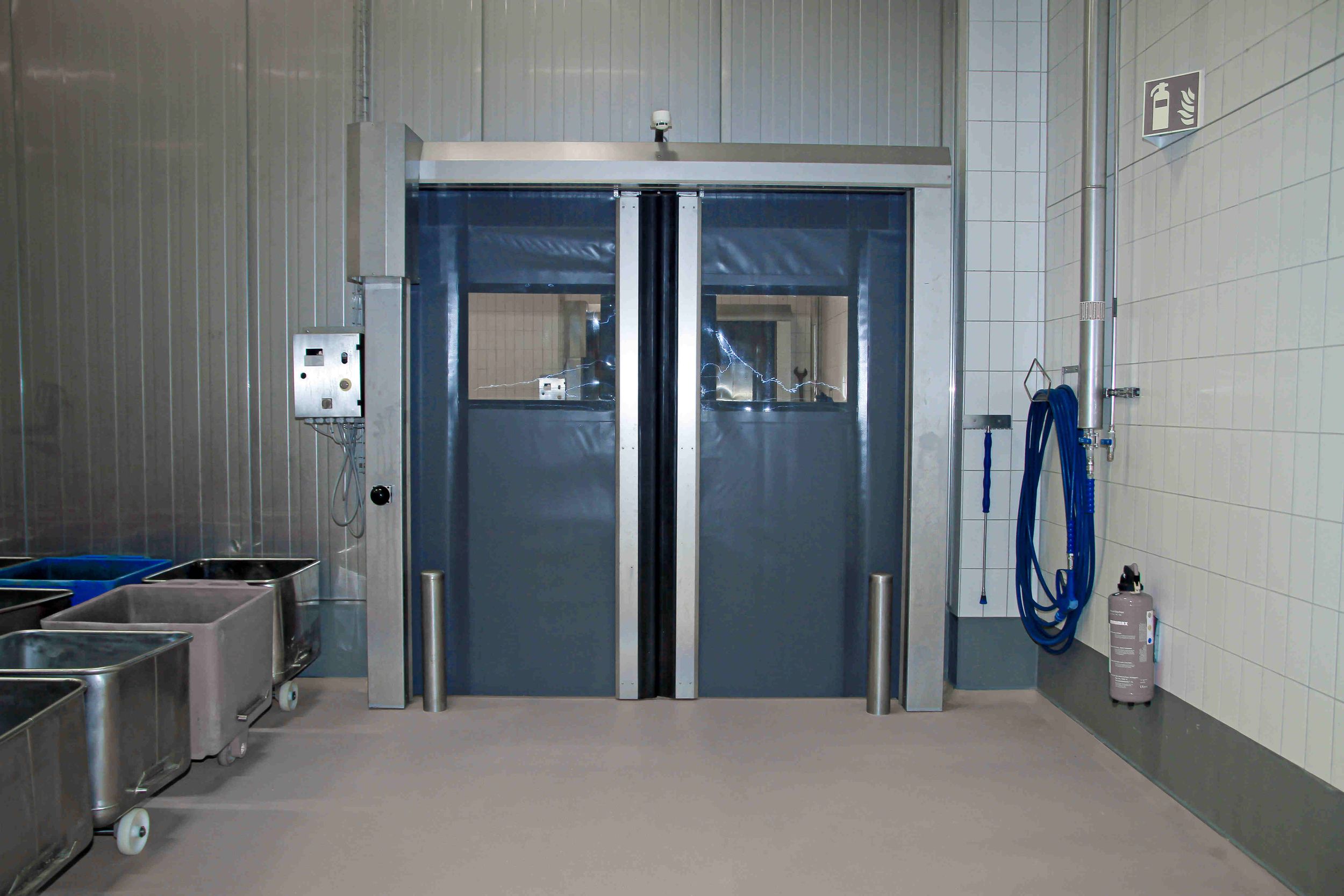

In the stainless steel version, the Transsprint meets the hygienic requirements of food, chemical and pharmaceuti cal industries.
Product features
- Opening speed up to 3.0 m/s
- Door size up to 6.0 m x 6.0 m
- Resistance to wind load up to class 2
- Low camber requirement
- Crash protection
- Special hangings
- Track heating
- Can be used down to -30°C

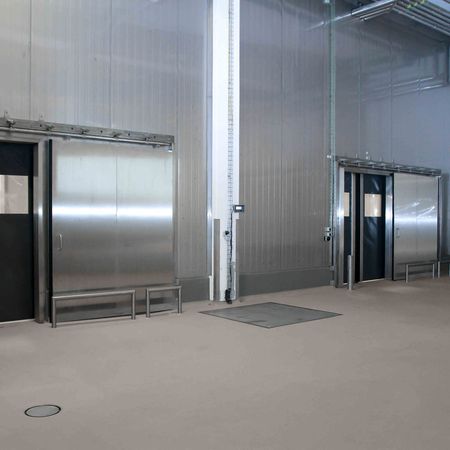

- Also available in stainless steel for food processing companies

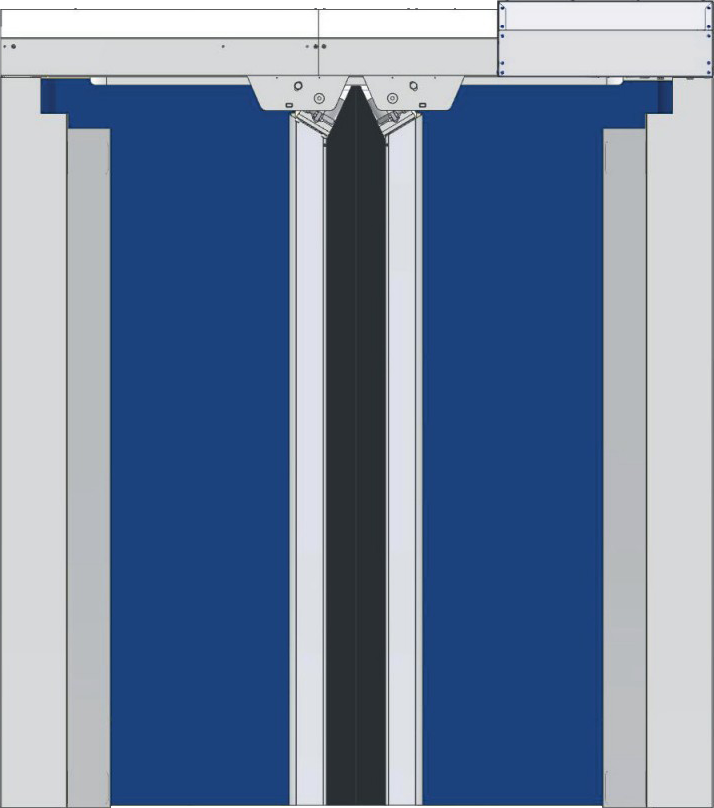

The special features

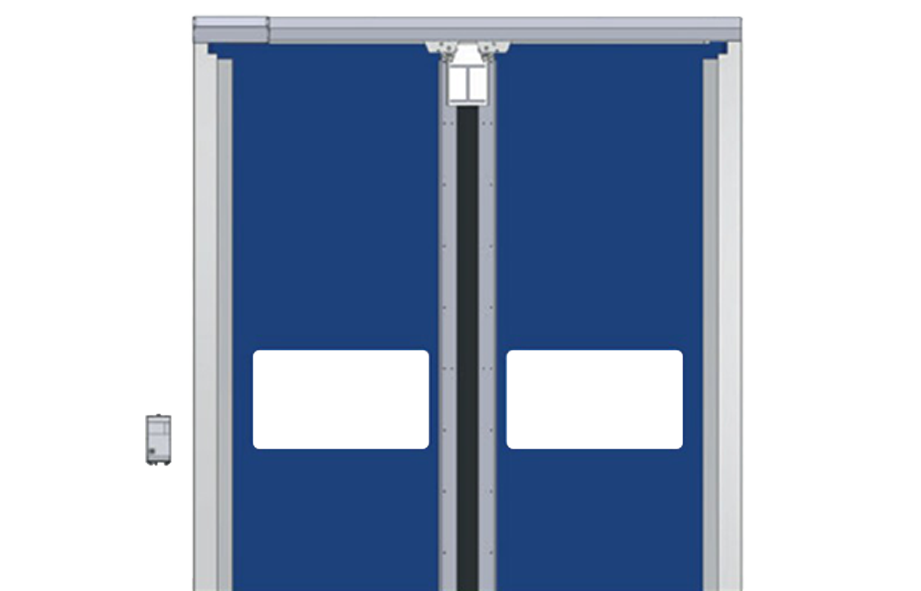

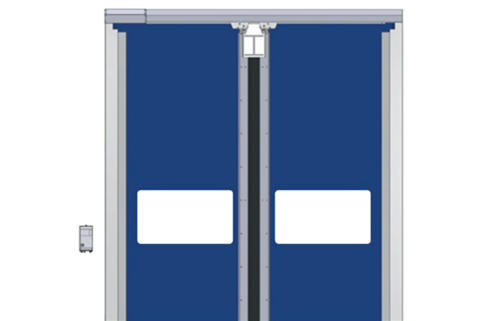

Gate overview

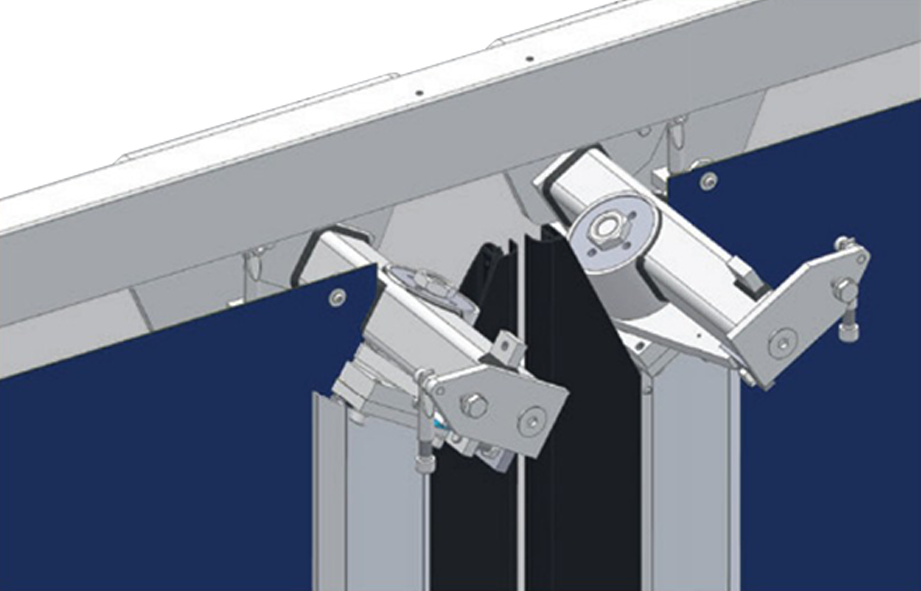

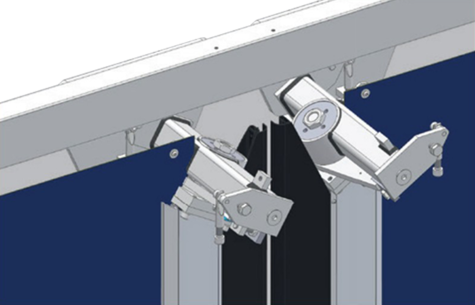

Crash protection

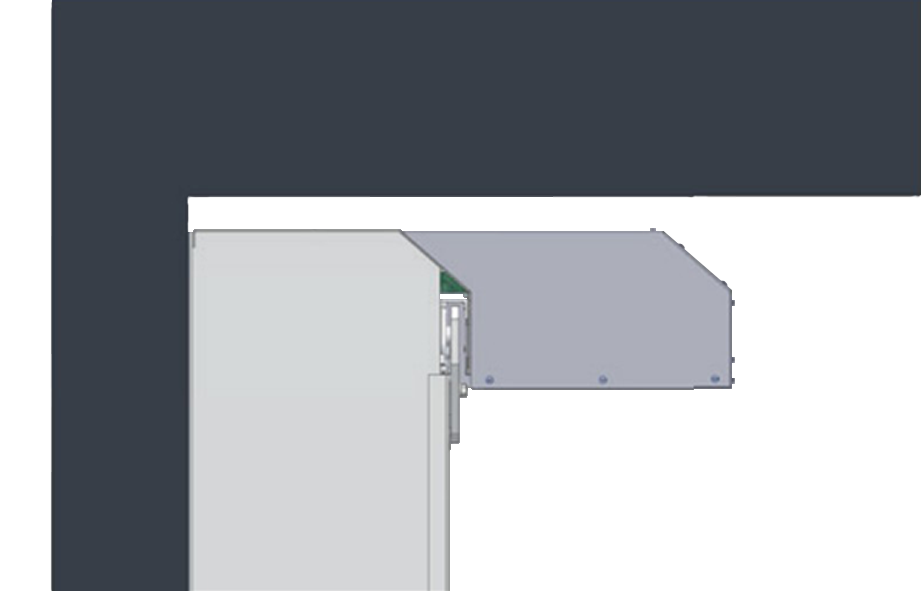

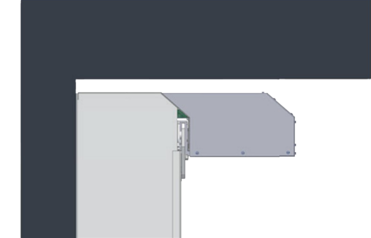

Lintel requirement 250 mm
Technical details
Size range
- Width (LDB) max.
- 6.000 mm
- Height (LDH) max.
- 6.000 mm
Special dimensions on request
Drive speed
Frequency-controlled drive
- Opening max.
- 3,0 m/s
- Closing max.
- 1,5 m/s
Control unit
- DR2100
Hanging
- available in various colors or fully printed with motifs
Power rating
- 230 V/50Hz, IP54 Drive
