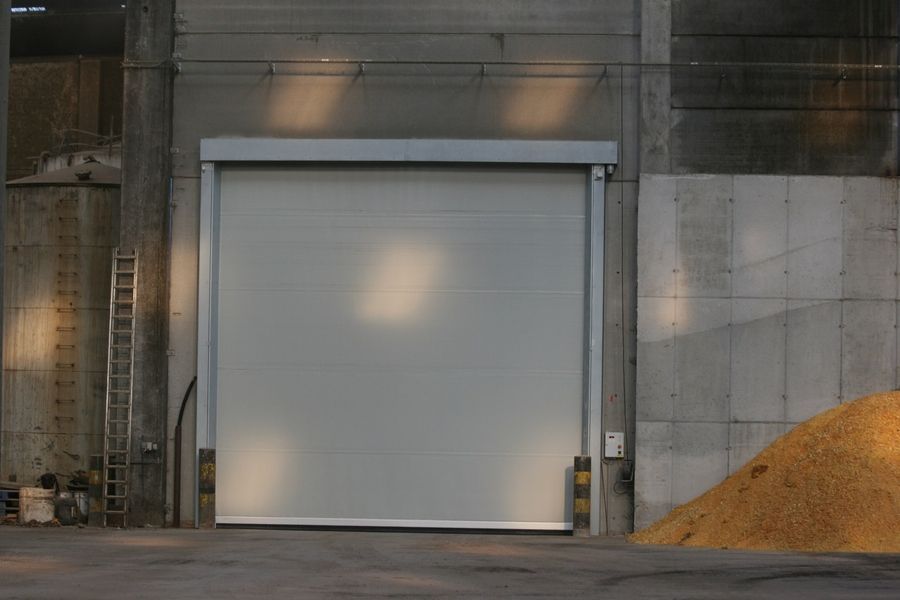

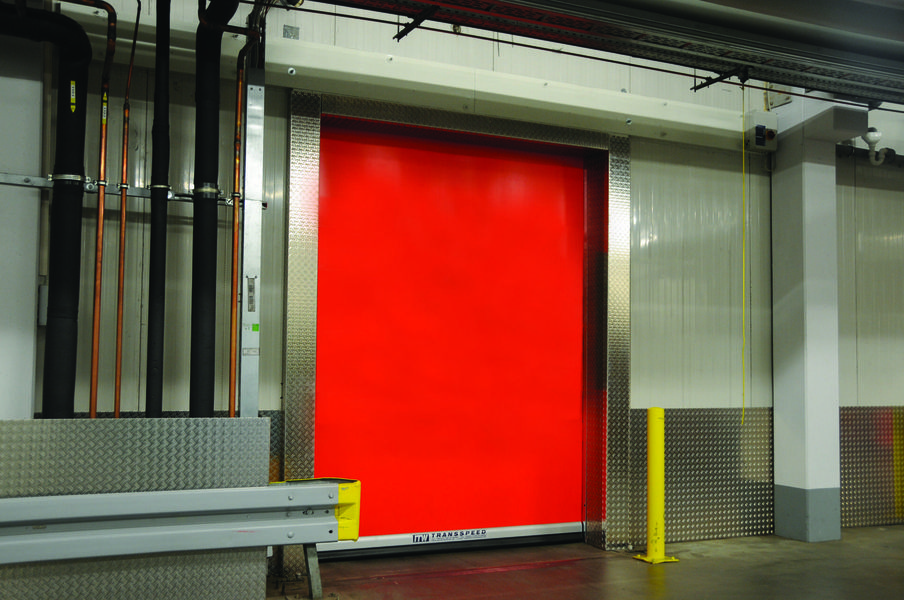

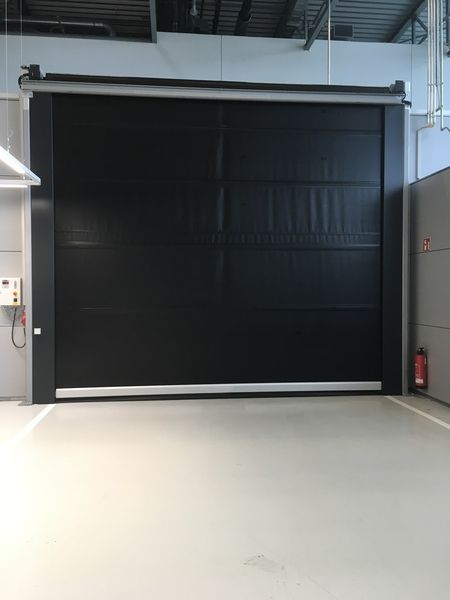

Transspeed ATEX
Doors for explosion protection
Our high-speed roller shutter doors from ITW meet the strict requirements of the ATEX product directives 94/9/EC and DIN 13453-1. The special encapsulation of the drives reliably prevents the formation of sparks. To ensure maximum safety, the control unit must be installed outside the zone.
The antistatic PVC hangings are available in various designs. versions are available so that you can choose the solution for your specific requirements.
With our high-speed roller shutters, you achieve maximum safety for use in explosion-protected areas. explosion-proof area. Our doors offer you the option of choosing the right door type and the desired curtain according to your individual requirements.
Technical details
Size range
- Width (LDB) max.
- 4.000 mm
- Height (LDH) max.
- 4.000 mm
Special dimensions on request
Drive speed
Horizontal high-speed door
- Opening max.
- 3,0 m/s
Vertical high-speed door
- Opening max.
- 2,0 m/s
Control unit
- DR2100
Power rating
- 230 V/50Hz, IP54 Drive
