Spiral door
External door for high frequencies and low energy losses
The sophisticated door leaf guide, the roll-up technology and the integrated lightgrid give the high-speed spiral door its character. The door runs quietly and almost wear-free due to the contactless movement into the spiral.
The spiral door was specially developed for outdoor exterior openings with requirements for high frequencies. Due to the opening speed of up to 2.5 m/s and its heat insulating properties, it ensures a considerable increase in efficiency and energy savings.
Product features
- Opening speed up to 2.0 m/s
- Door size up to 6,000 mm x 6,000 mm
- Resistance to wind load up to class 5
- Non-contact protection through a light grid
- Energy-efficient thanks to thermally separated profiles
- Smooth running due to plastic spiral
- RAL of your choice
- Hinged guide rail
High-speed spiral door
Our high-speed spiral doors combine speed with high thermal insulation. The doors have been specially developed for outdoor areas with high frequency requirements. The high-speed spiral door opens significantly faster than a conventional sectional door and is therefore the ideal door system for frequent openings.
The special features

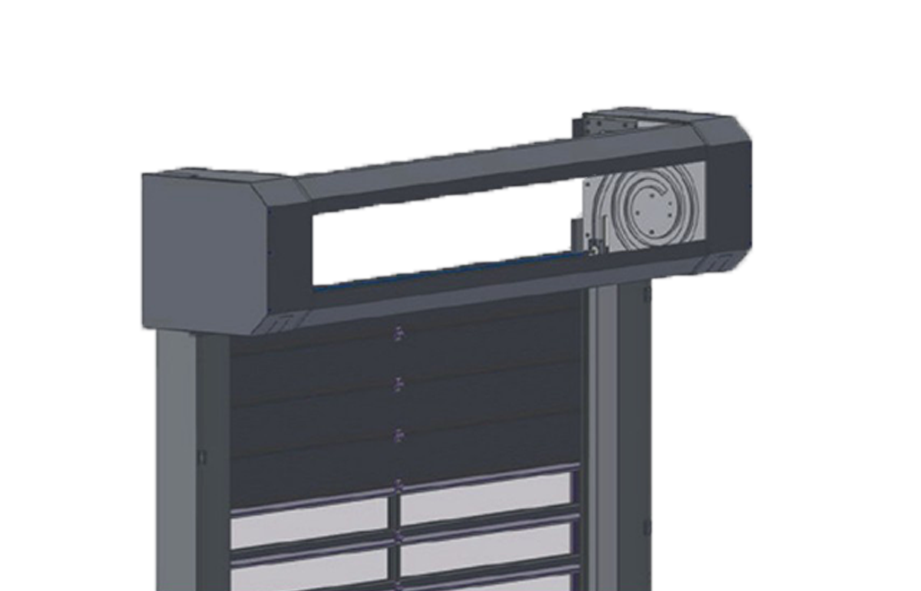

Round spiral

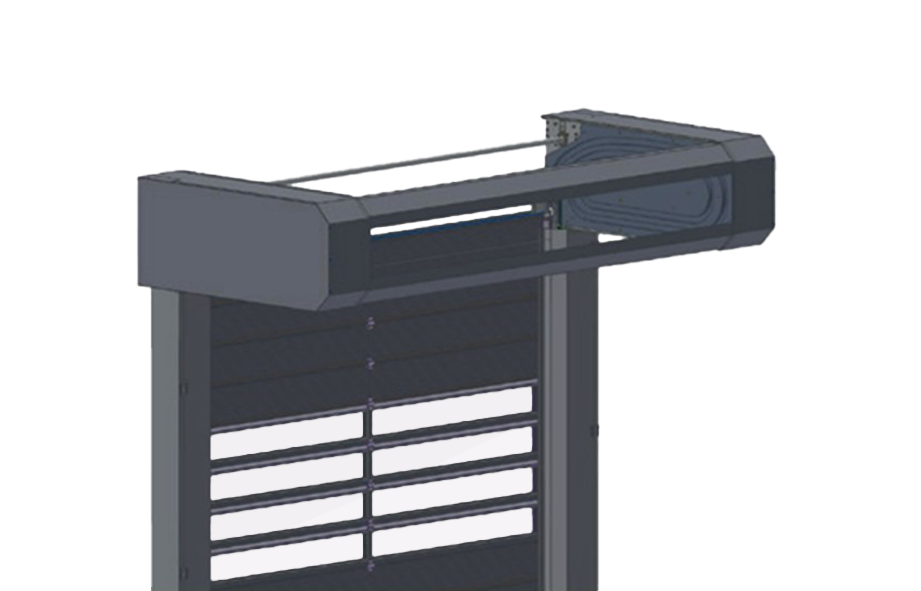

Oval spiral

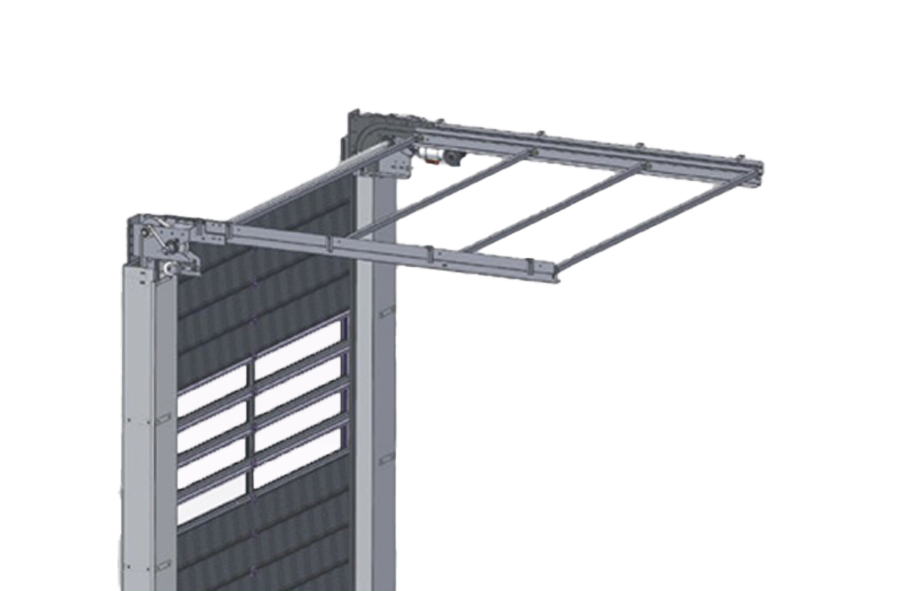

Low camber

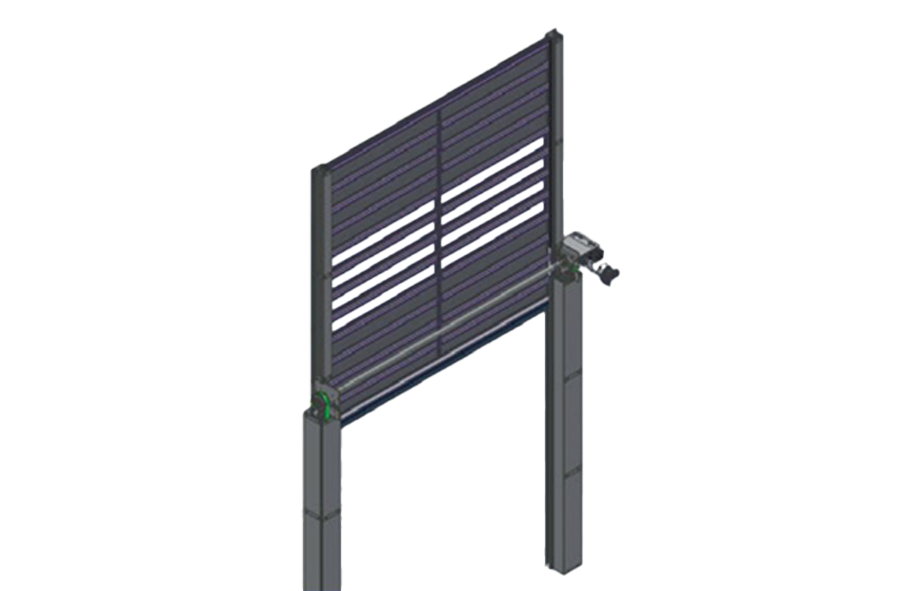

Vertical runner

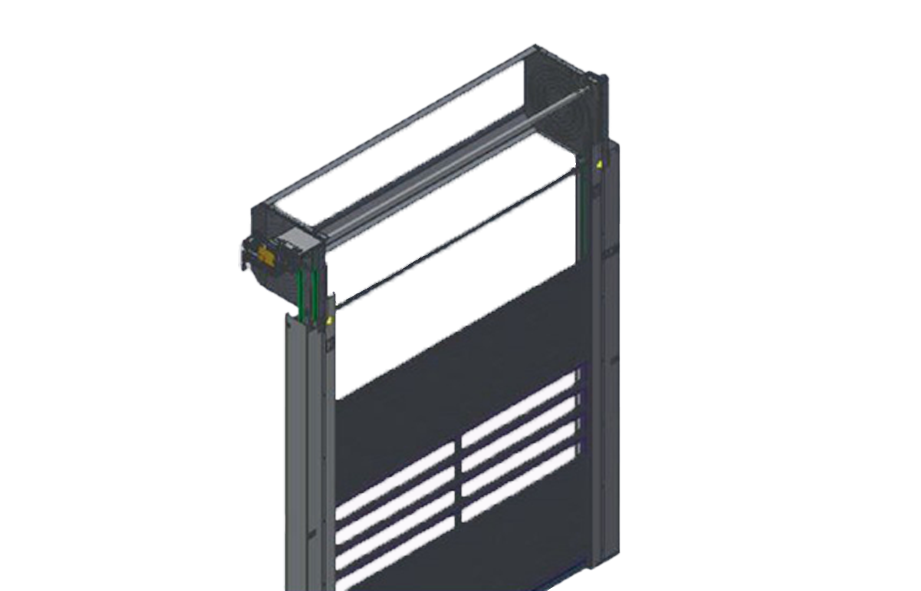

Height-guided deflection

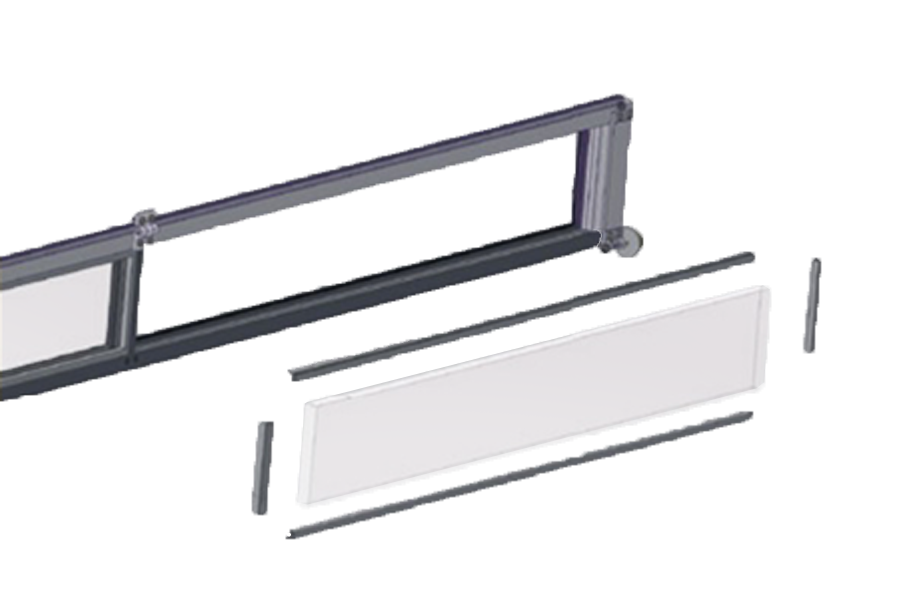

Panes & slats quick to replace thanks to glass retaining strips
Technical data
Size range
- Maximum height
- 6.000 mm
- Maximum width
- 6.000 mm
Special dimensions on request
Speed
Integrated frequency inverter
- Opening speed
- 2,5 m/s
- Closing speed
- 1,0 m/s
Control
- Microprocessor control
Resistance to wind load (EN12424)
- Class 3
Door leaf
- so-panels: double-walled, insulated, thermically separated, colour: RAL 9006 white aluminum.
- Vision panels: Aluminum frame panels, thermically separated, anodized E6EV1. Infill: Double-Walled acrylic glass
Spiral Door ALU
The high-speed spiral door opens significantly faster than a conventional sectional door and is therefore the ideal door system for frequent openings.
