Transrapid
PVC high-speed door with very high resistance to wind loads.
The high-speed roll-up door with an approx. 3 mm thick curtain is quick-opening and closing, vertically. The low lintel requirement, quiet operation and the large door openings up to 10,000 x 8,500 mm characterize the Transrapid.
Product features
- Opening speed up to 2.0 m/s
- Door size up to 12.0 m x 8.5 m
- Resistance to wind load up to class 4
- Extremely robust
- Large selection of colours
- Permanent hanging tension
- Weight equalisation through tension springs
Robust and flexible
The permanent hanging tension ensures safe and smooth door
smooth door operation.
Hinged track boxes enable easy cleaning and maintenance, even in dusty conditions.
The special features

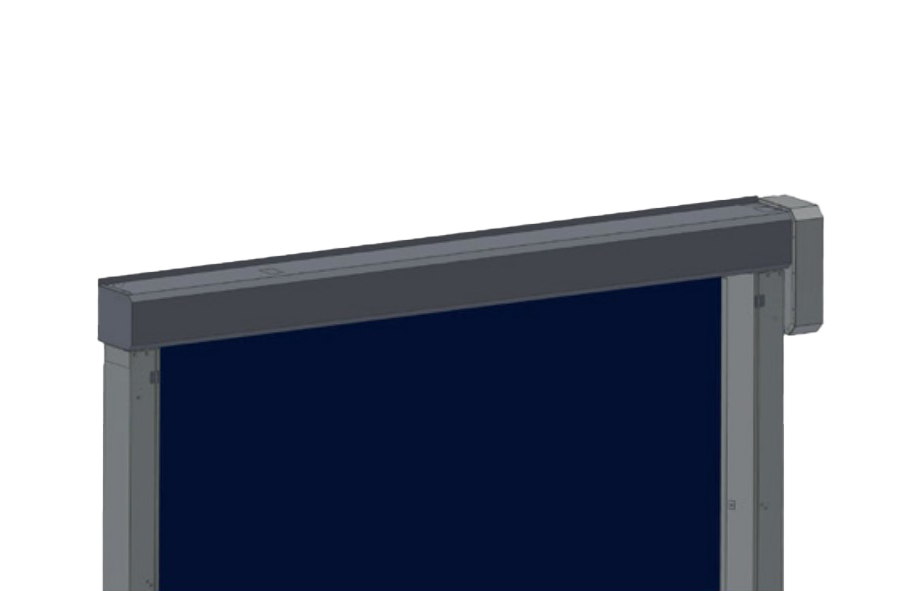

Bale cover

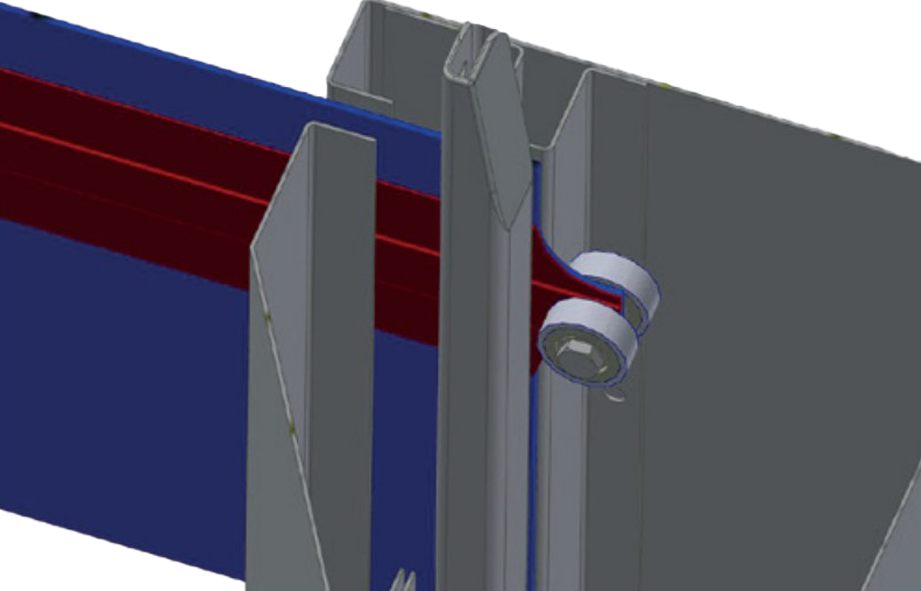

Wind pressure protection

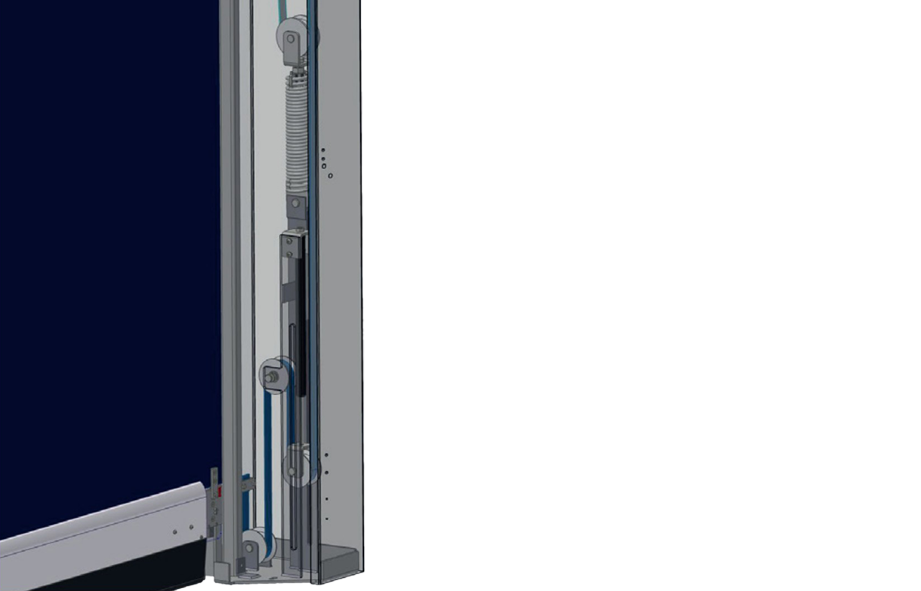

Weight equalisation and permanent hanging tension
Technical data
Size range
- Maximum height
- 10.000 mm
- Maximum width
- 8.500 mm
Speed
Integrated frequency inverter
- Opening speed
- 2,0 m/s
- Closing speed
- 0,8 m/s
Control
- Microprocessor control
Curtain
- PVC approx. 3 mm with two fabric inserts and viewing windows
- Integrated steel wind pressure locks
- Permanent curtain tension
Resistance to wind load (EN12424)
- Class 3
