Pro-Tec-TOR 344mp
Safety for people, machines and the environment
The high requirements for occupational safety in high-tech manufacturing processes with short downtimes are constantly increasing.

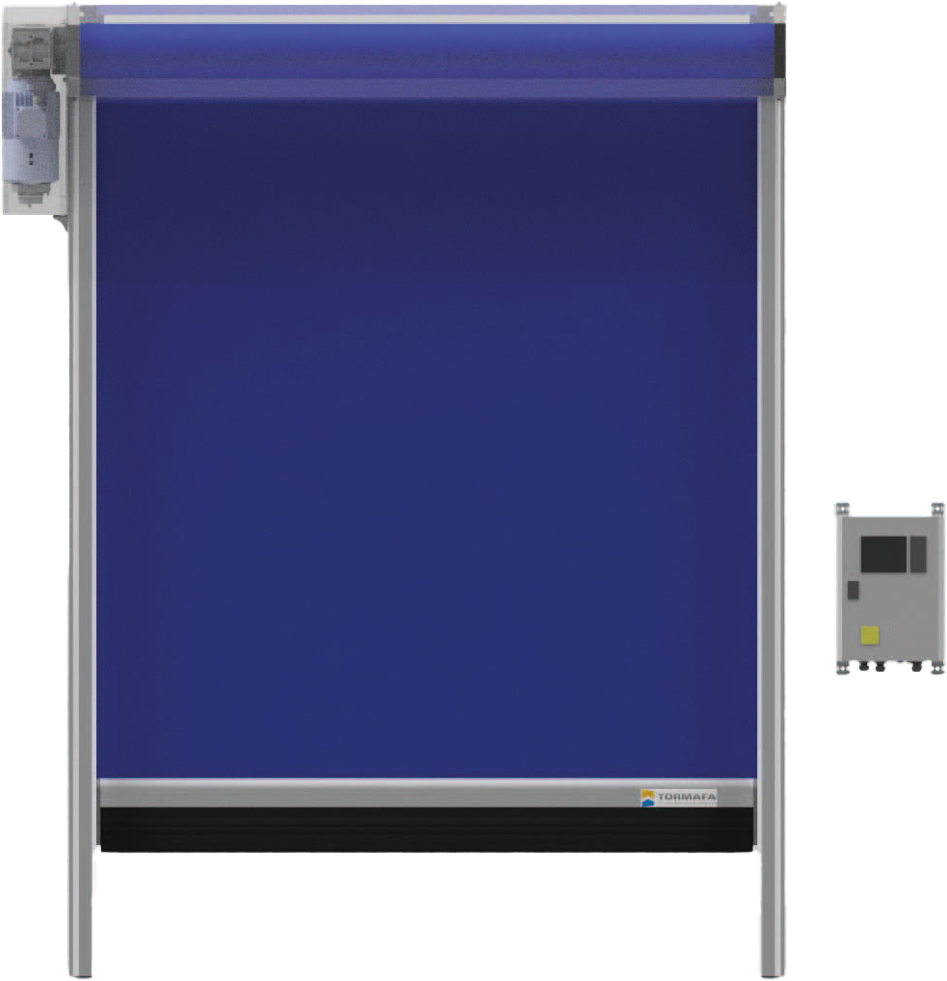

The Pro-Tec-TOR 344mp machine safety gate fulfills all these requirements thanks to its compactness and space-saving design.

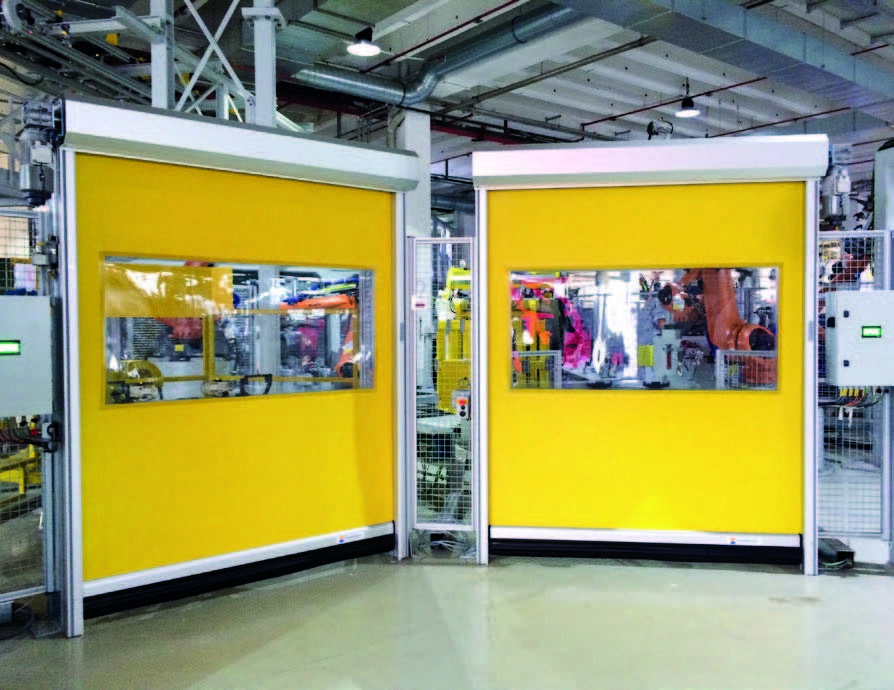

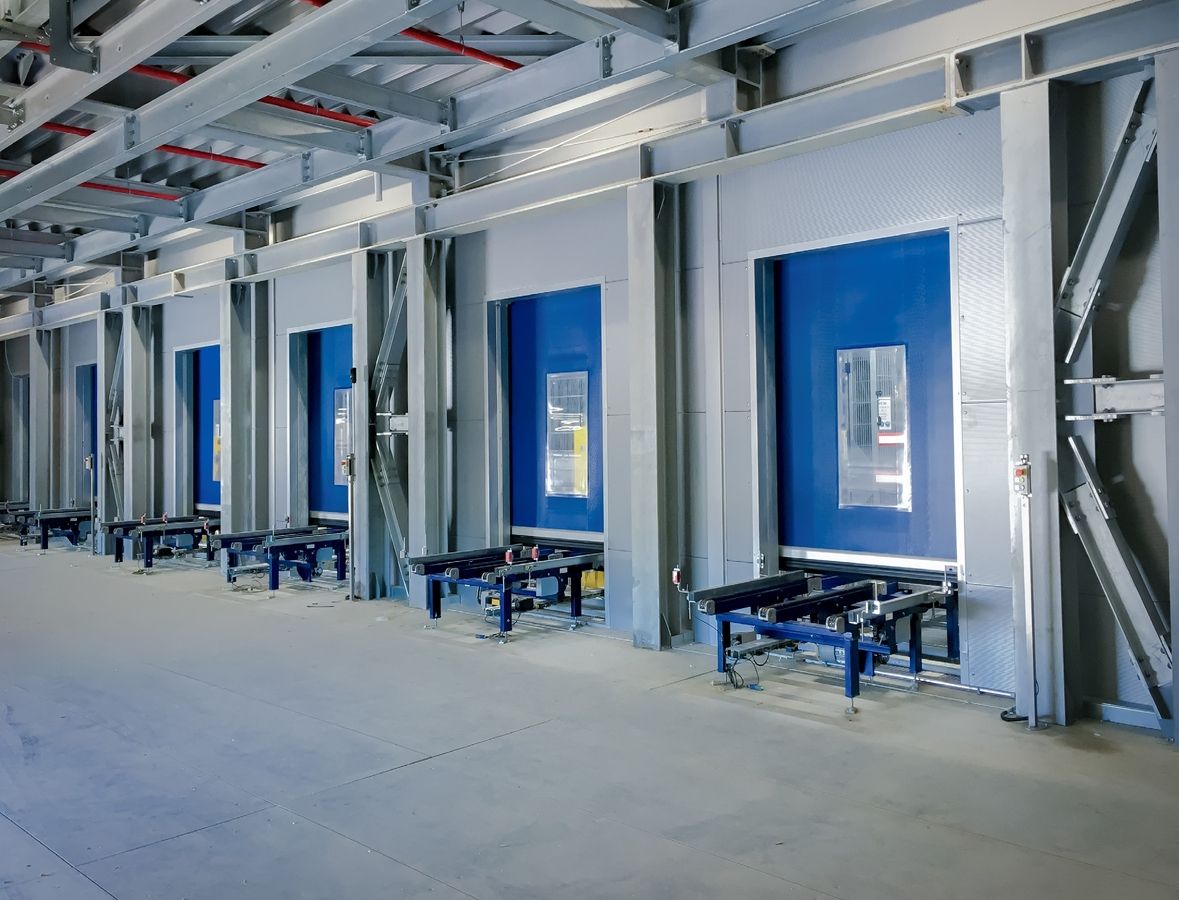

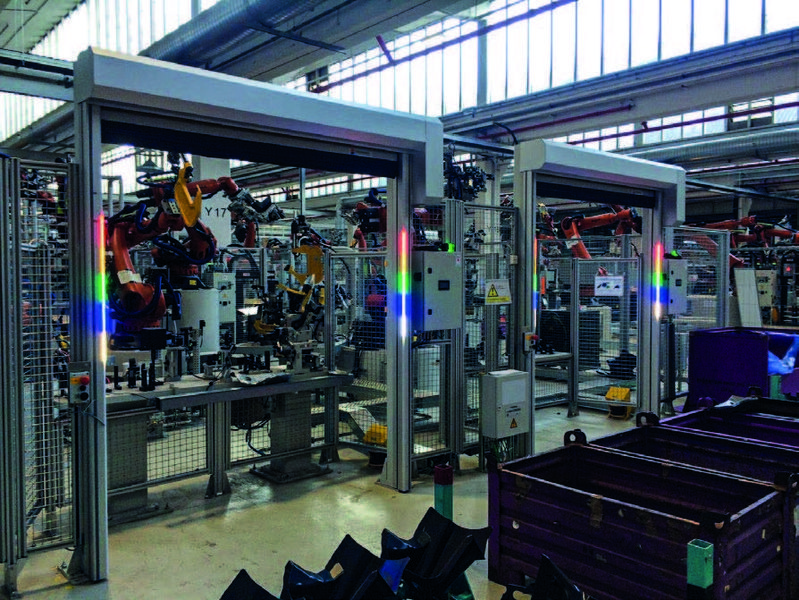

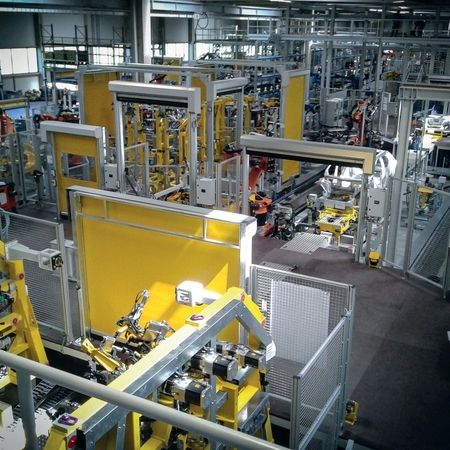

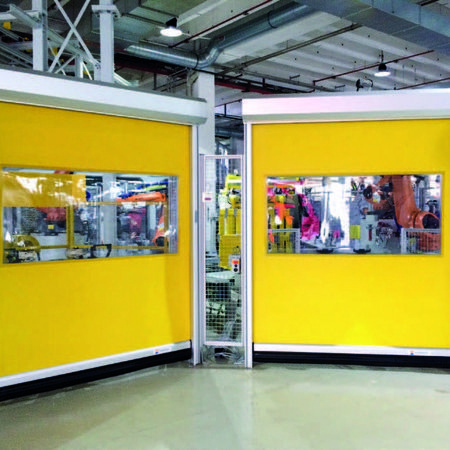

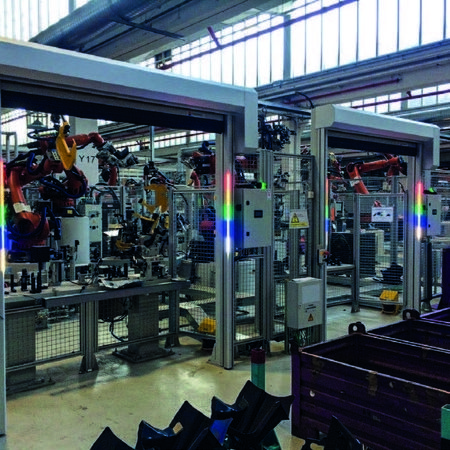

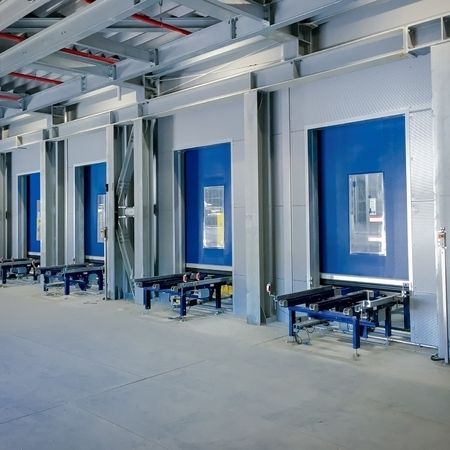

Machine safety gates protect people and machines alike. The short cycle times enable fast production steps.
This enables unhindered access to the machine and workpiece and the complete enclosure of a production step.
This protects employees from flying sparks, glowing chips, welding spatter, etc.

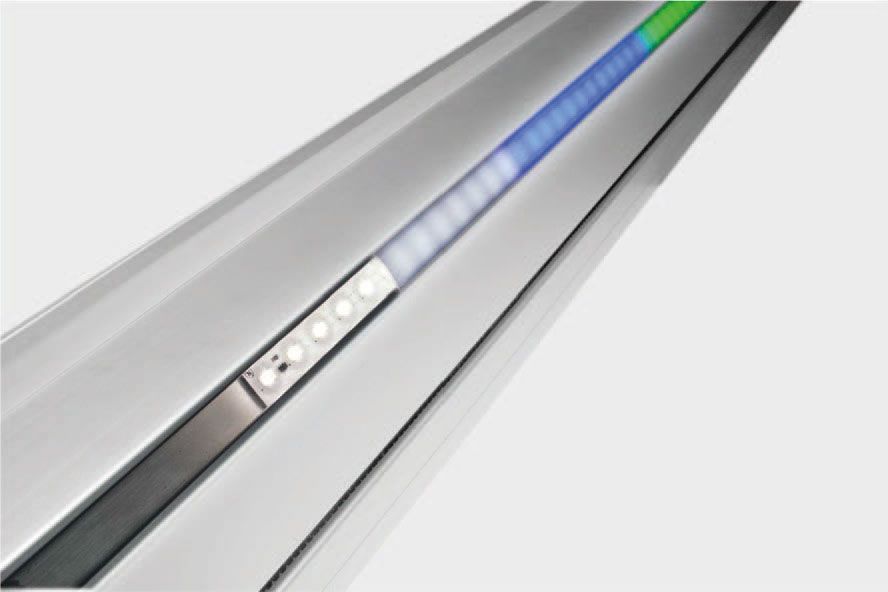

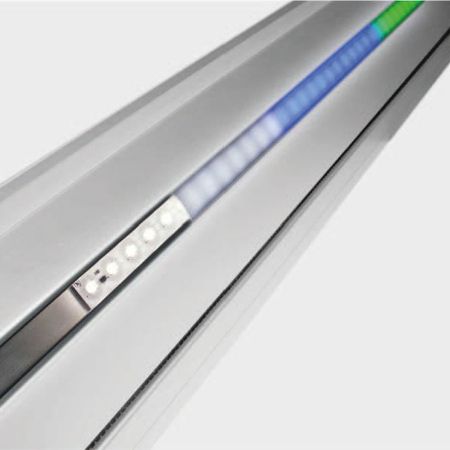

LED Pro-Tec-TOR-ACTIONLIGHT

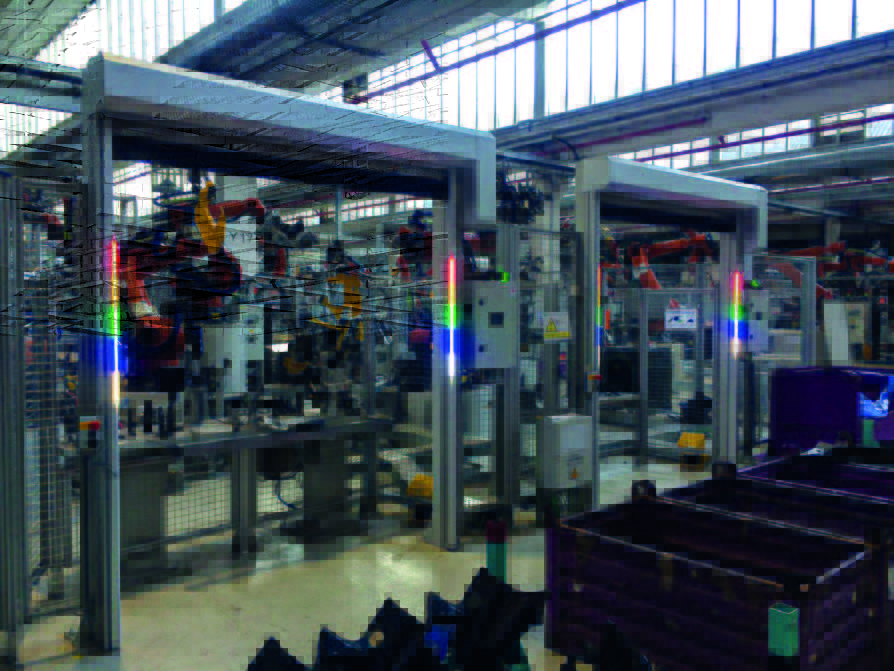

The Actionlight is an optical information system of the latest generation. The 5 colours (red, yellow, green, blue, white) indicate different machine statuses.
The assignment of the colours can be individually adapted to your own production processes.
The special features

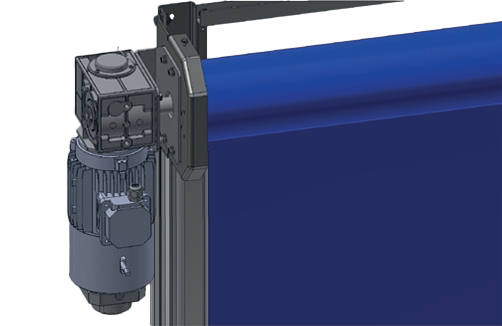

Drive can be rotated in 90° steps

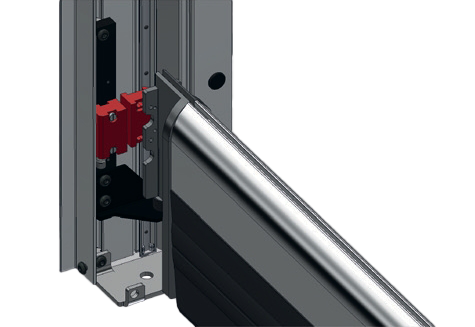

Safe limit switch can be positioned precisely and is tamper-proof in the guide rail

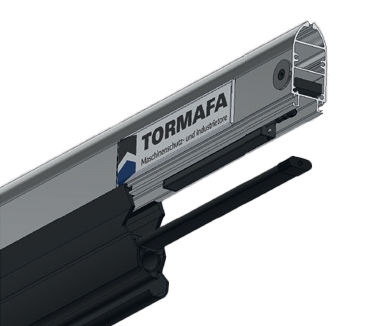

Floor sealing profile with EPDM rubber and electrical safety contact strip

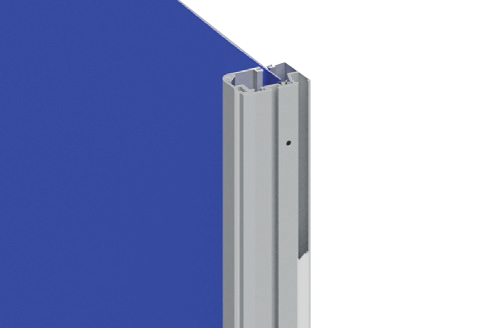

Integrated cable ducts and fastening grooves
Technical data
Speed
Frequency-controlled drive
- Open max.
- 3,0 m/s
- Close max.
- 1,7 m/s
Gate sizes
- Width max.
- 8,000 mm
- Height max.
- 5,000 mm
- Use as a movable safety guard
- Safety switch and EMERGENCY STOP performance level e
Important options

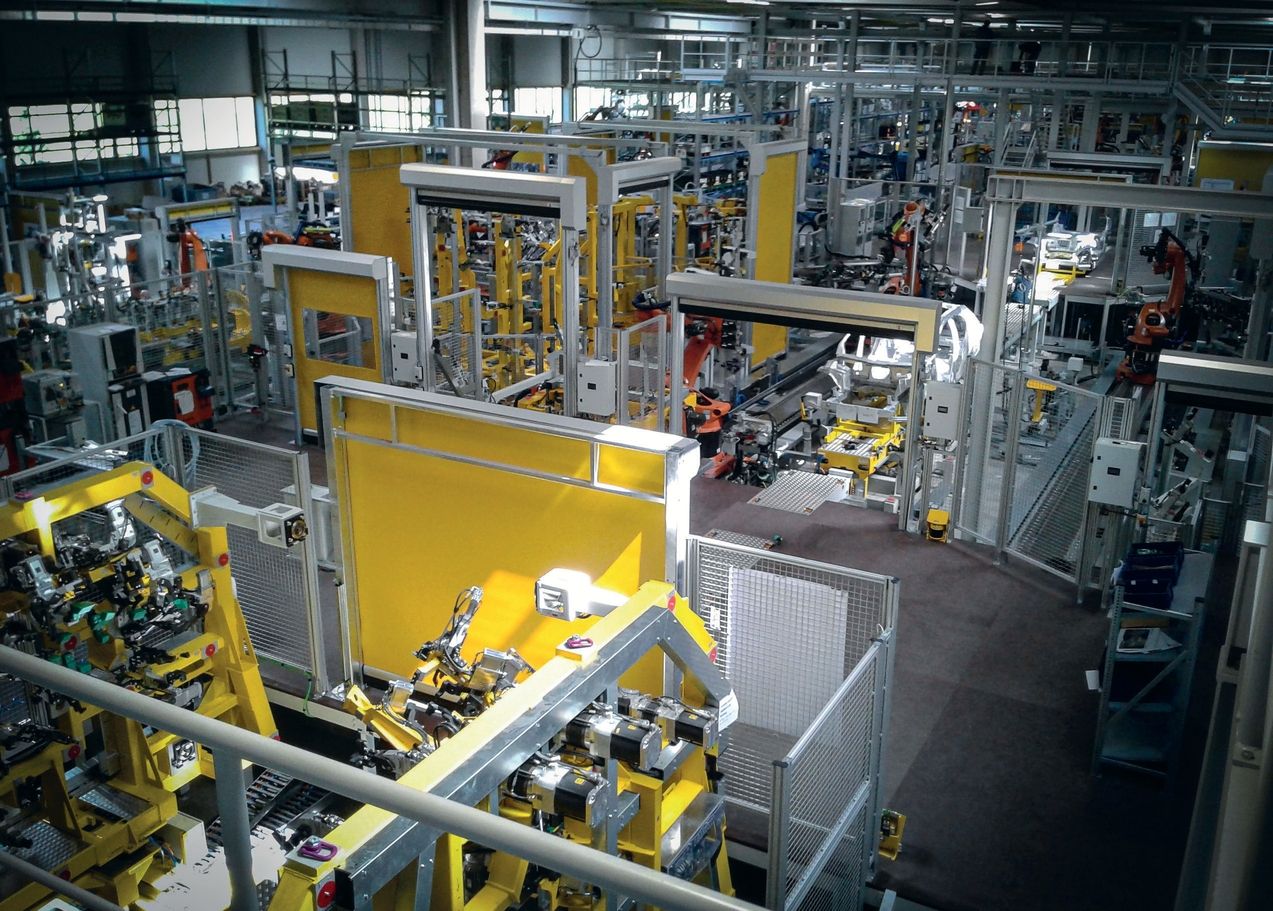

- AIDA control concept, customised to the requirements of the automotive industry
- Variable versions of the control concept
- Special hangings
- Protection by light grid
- Monitoring laser scanner to increase the closing speed
