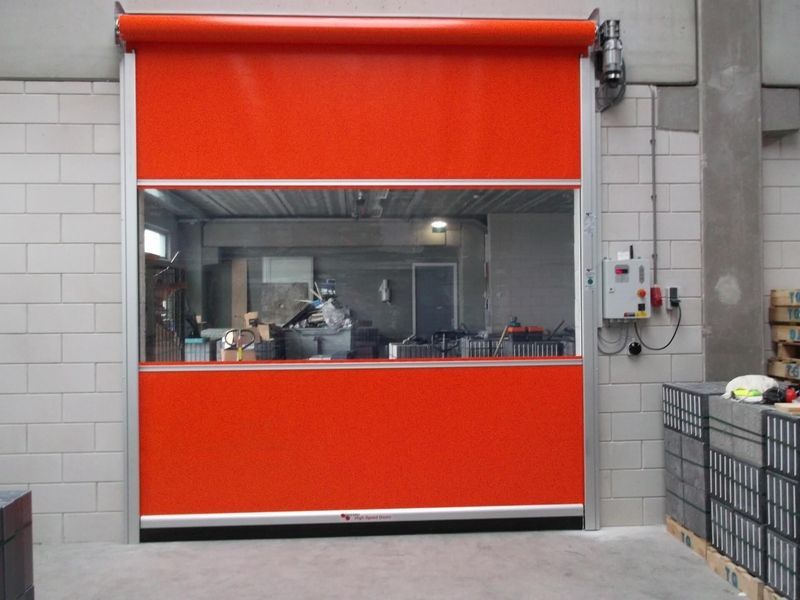

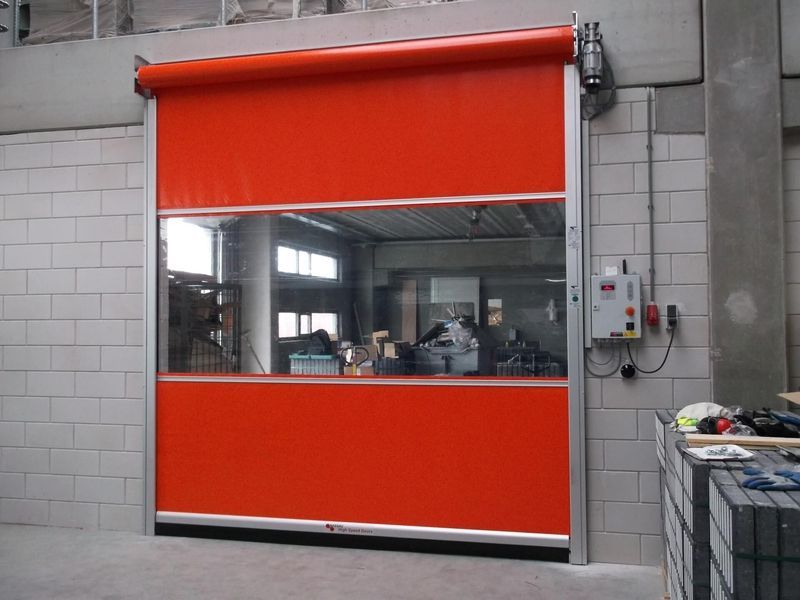

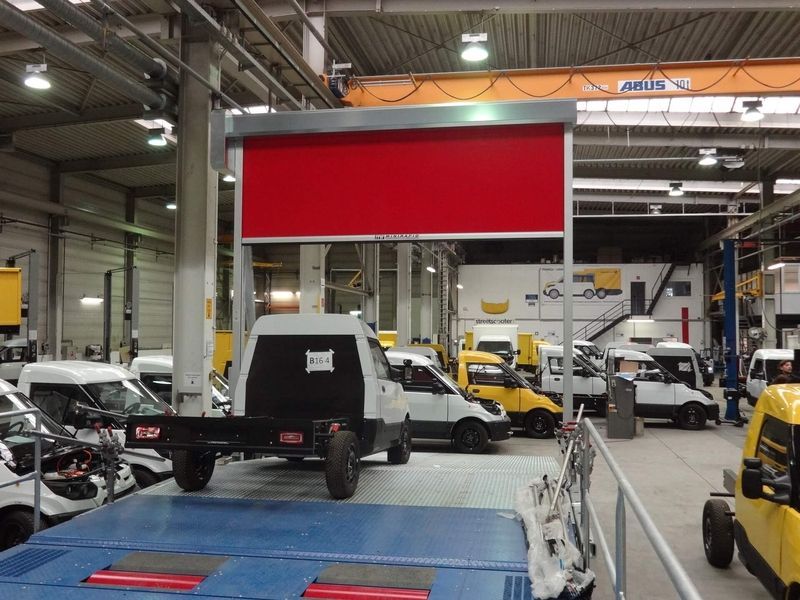

Minirapid AL
Compact and fast. Easy to install.
The stable and self-supporting construction requires little lateral space. The close-fitting fabric curtain not only ensures a high level of tightness but is also flexible and
and versatile.
The high-speed roller shutter door from the Minirapid product line consists of a sophisticated modular system. This makes it possible to cover a wide range of applications.
Product features
- Opening speed up to 2.0 m/s
- Door size up to 5.0 m x 5.0 m
- Low camber requirement
- Crash protection
- Large selection of colours
- Cleanroom, chemical, pharmaceutical and Atex

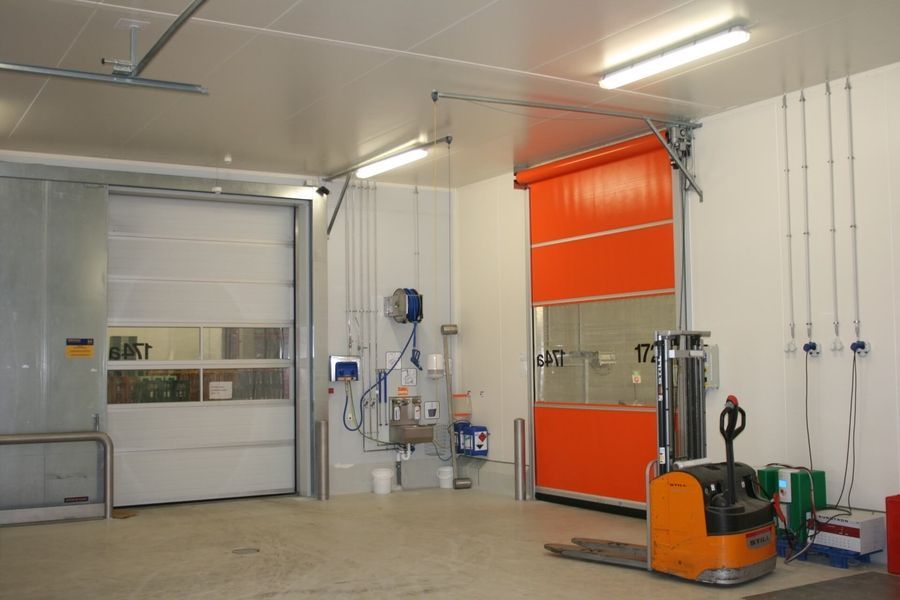

- For supermarkets, foodstuffs and in refrigerated and deep-freeze areas down to -28°
The special features

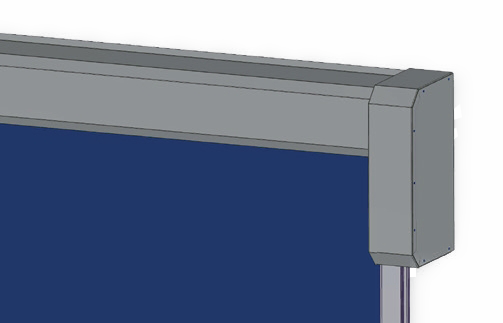

Drive and bale panelling

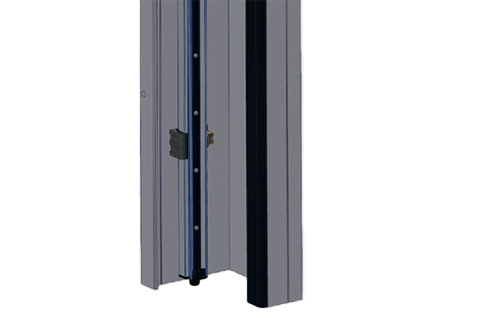

Light grid

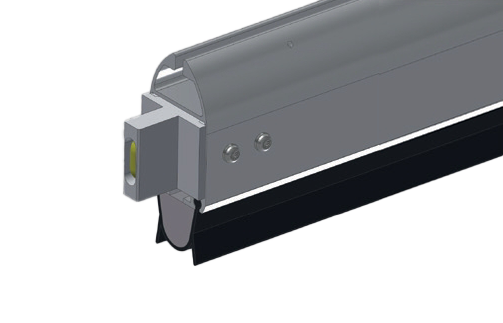

Anti-crash function

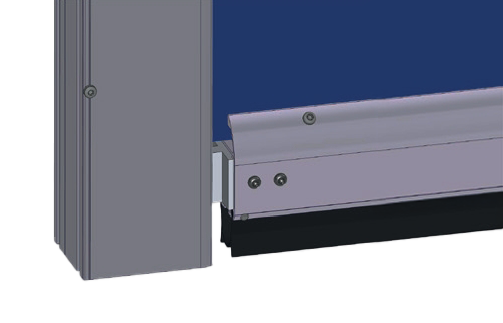

Crash in the lateral guide
Technical details
Size range
- Width (LDB) max.
- 5.000 mm
- Height (LDH) max.
- 5.000 mm
Special dimensions on request
Drive speed
Frequency-controlled drive
- Opening max.
- 2,0 m/s
- Closing max.
- 0,8 m/s
Control unit
- DR2100
- TS971
Hanging
- available in various colors or fully printed with motifs
Resistance to wind load
- Class 0 - 1
Power rating
- 230 V/50Hz, IP54 Drive
