Pro-Tec-TOR 344usd
For crane and robot systems, painting and
conveyor systems
The downward-opening high-speed roller shutter door, Pro-Tec door 344usd, has no obstructions above the door opening. Ideal for use with crane and robot systems, painting and conveyor systems. The compact bale box allows opening up to 450 mm above FFB. The heavy-duty, tear-resistant fabric curtain provides a secure hold and is available in several designs and colours.
Advantages at a glance
- Opening speed up to 2.0 m/s
- Door sizes up to 6,000 mm x 5,500 mm
- Large selection of colours
- Optical information system (optional)
- Closing upwards
- No camber requirement
- Narrow side space requirement
- Self-supporting

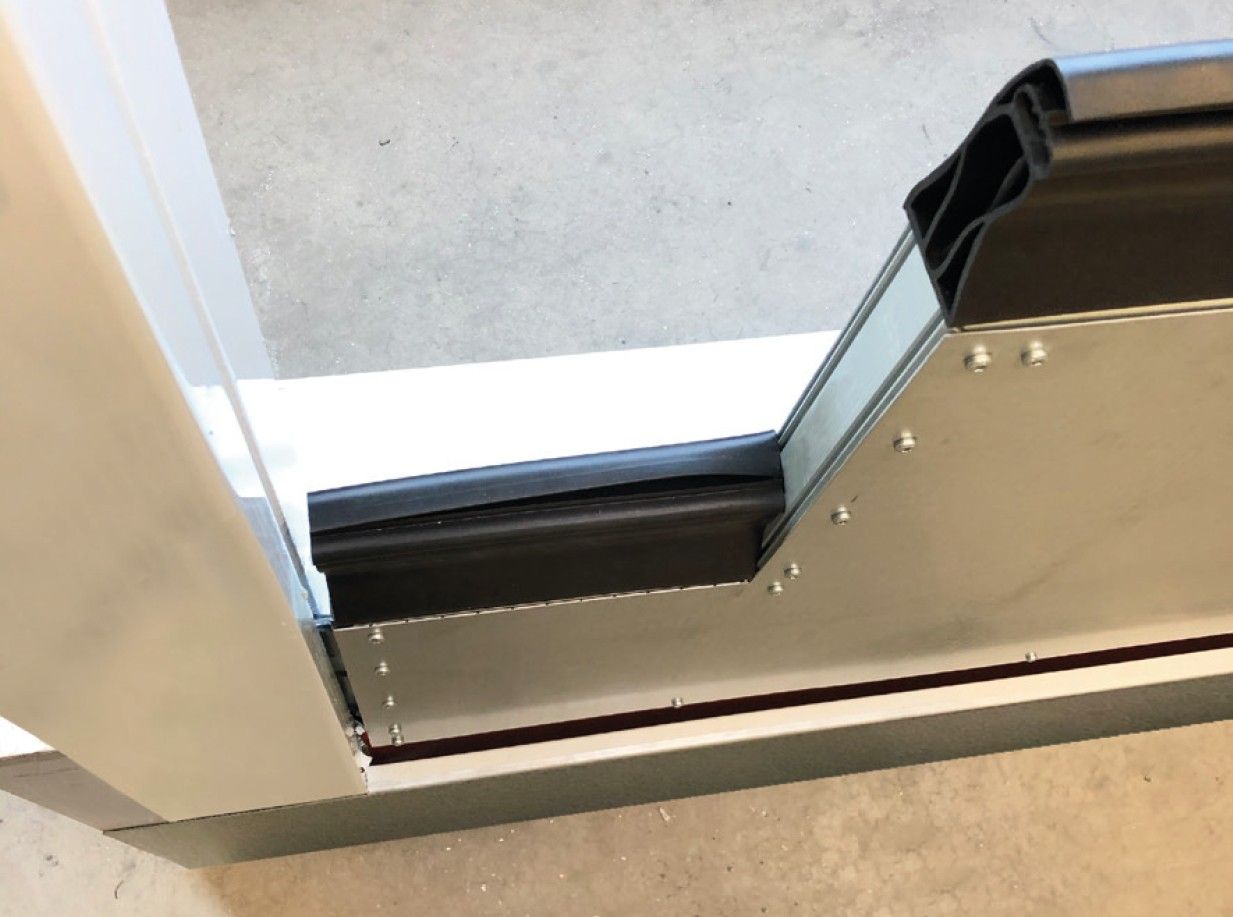

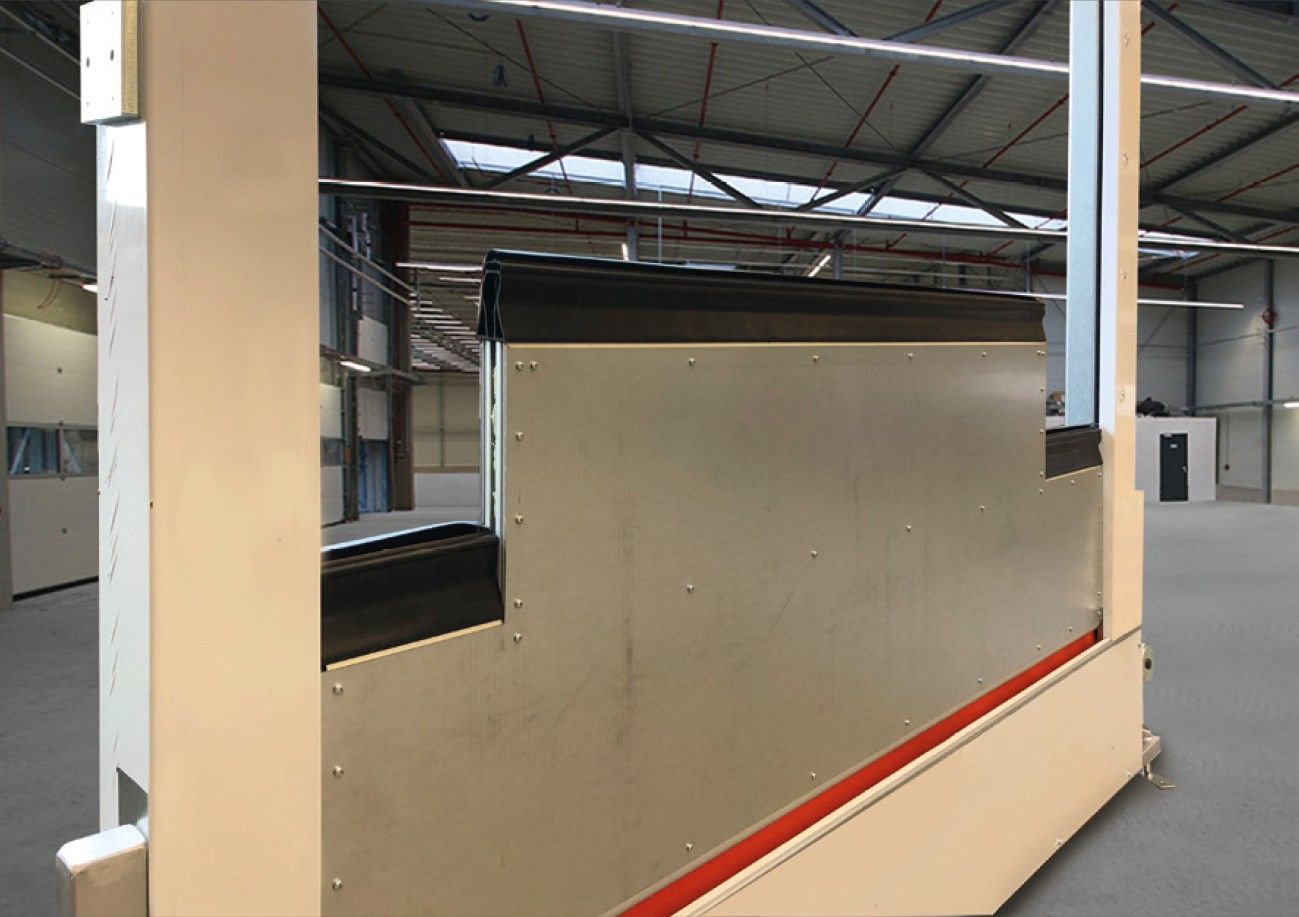

- Cut-outs for transport systems possible

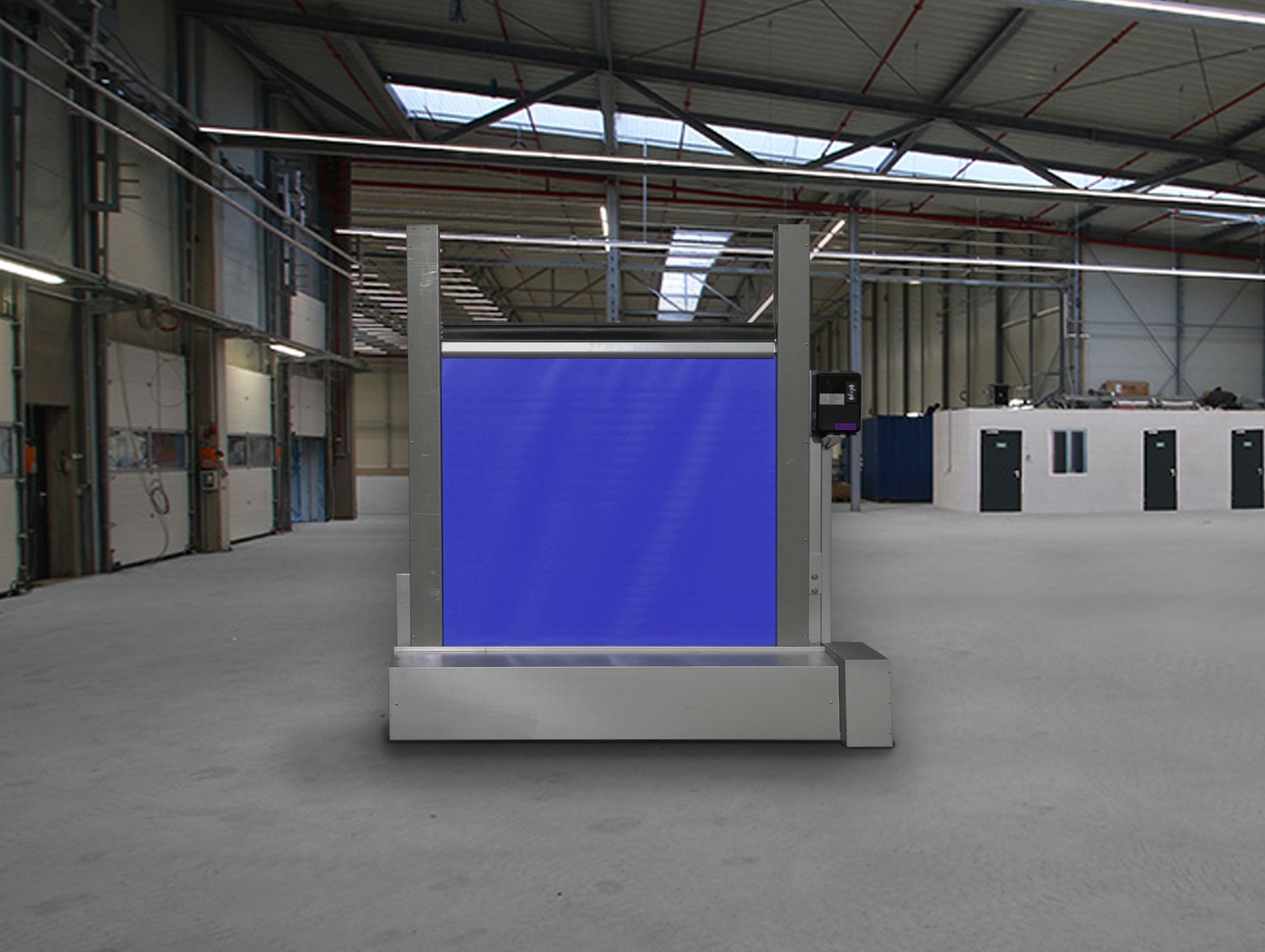

- Freestanding version

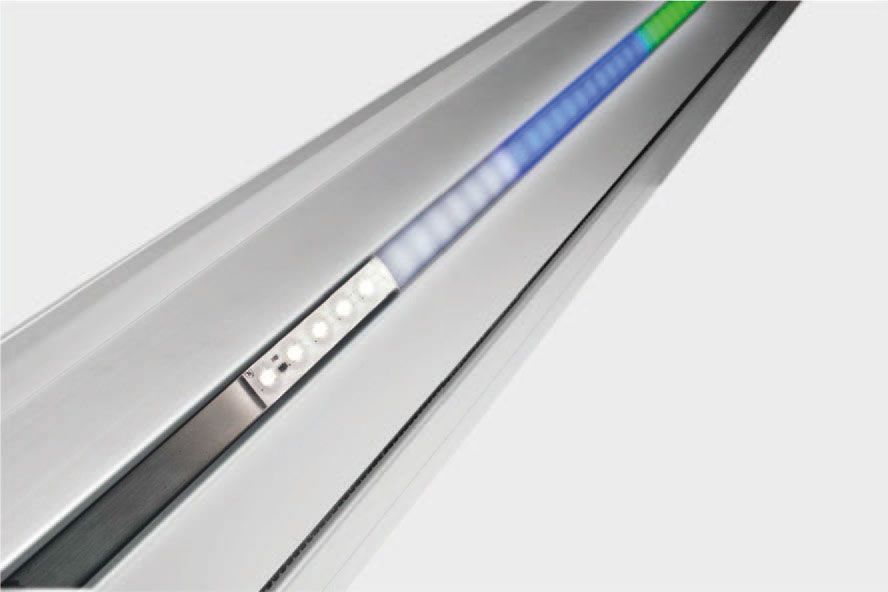

LED Pro-Tec-TOR-ACTIONLIGHT
The Actionlight is an optical information system of the latest generation. The 5 colours (red, yellow, green, blue, white) indicate different machine statuses.
The assignment of the colours can be individually adapted to your own production processes.
Die besonderen Merkmale

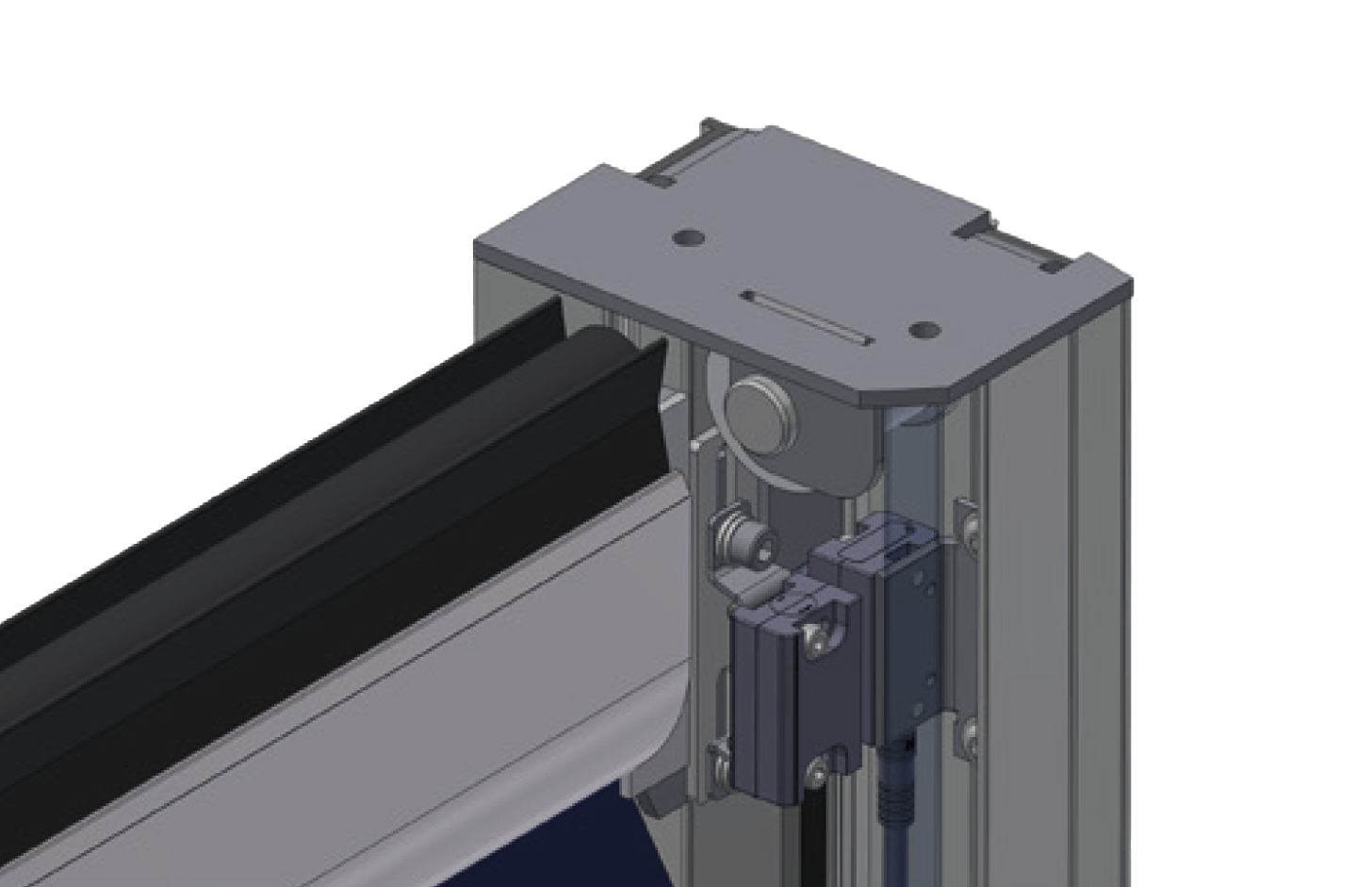

Upper safety limit switch

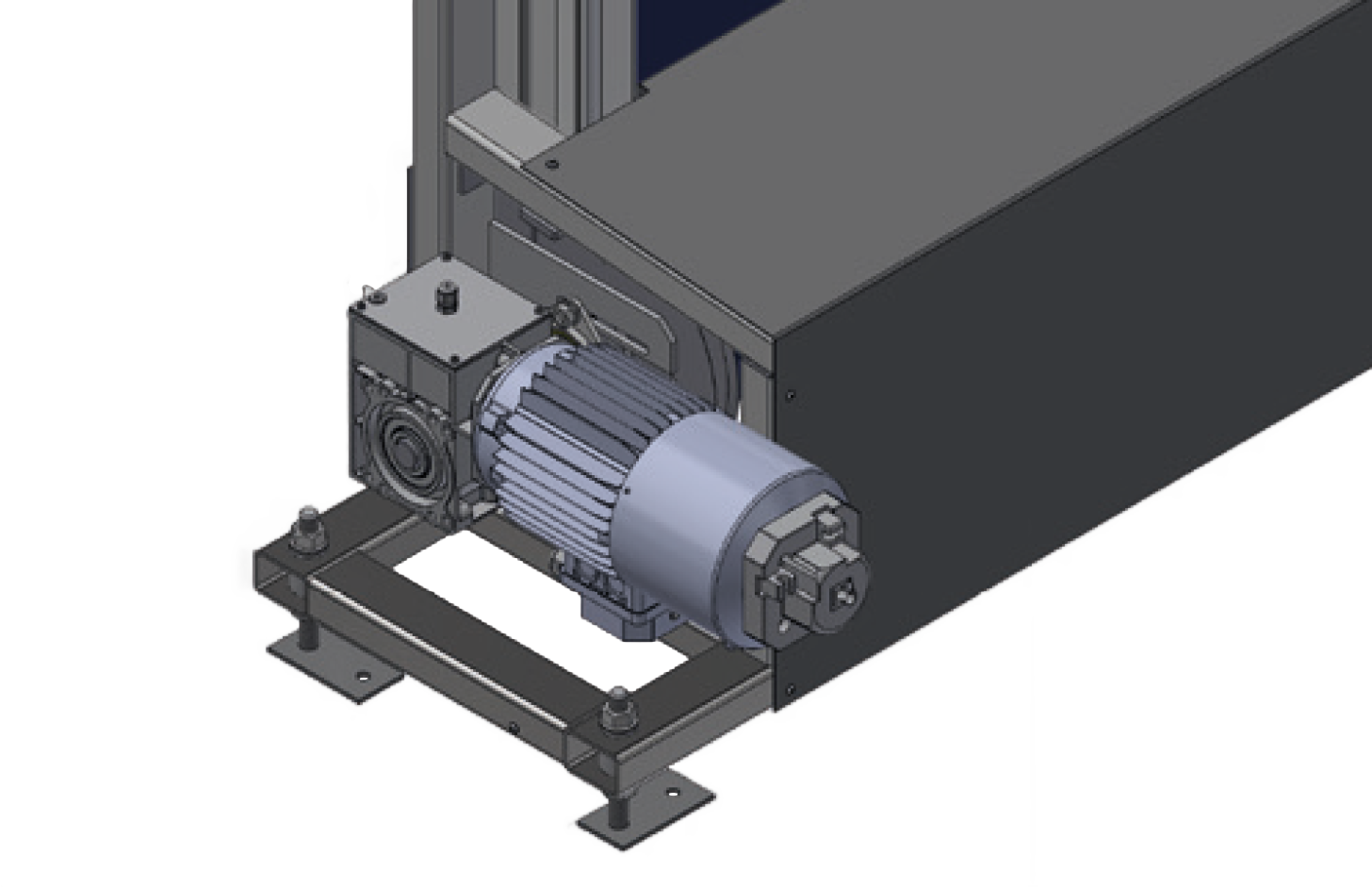

Side-mounted drive, optionally upright

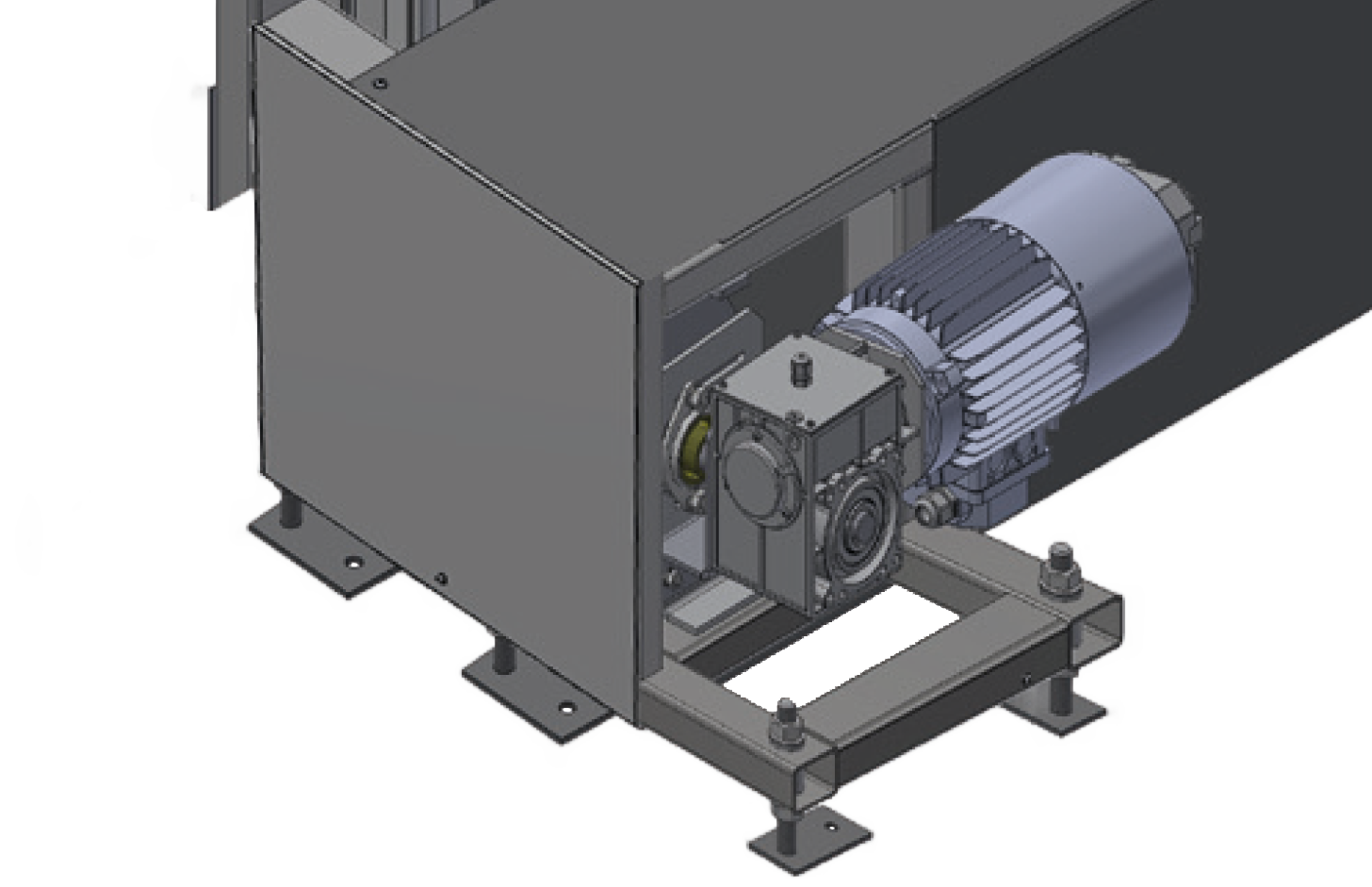

Drive front

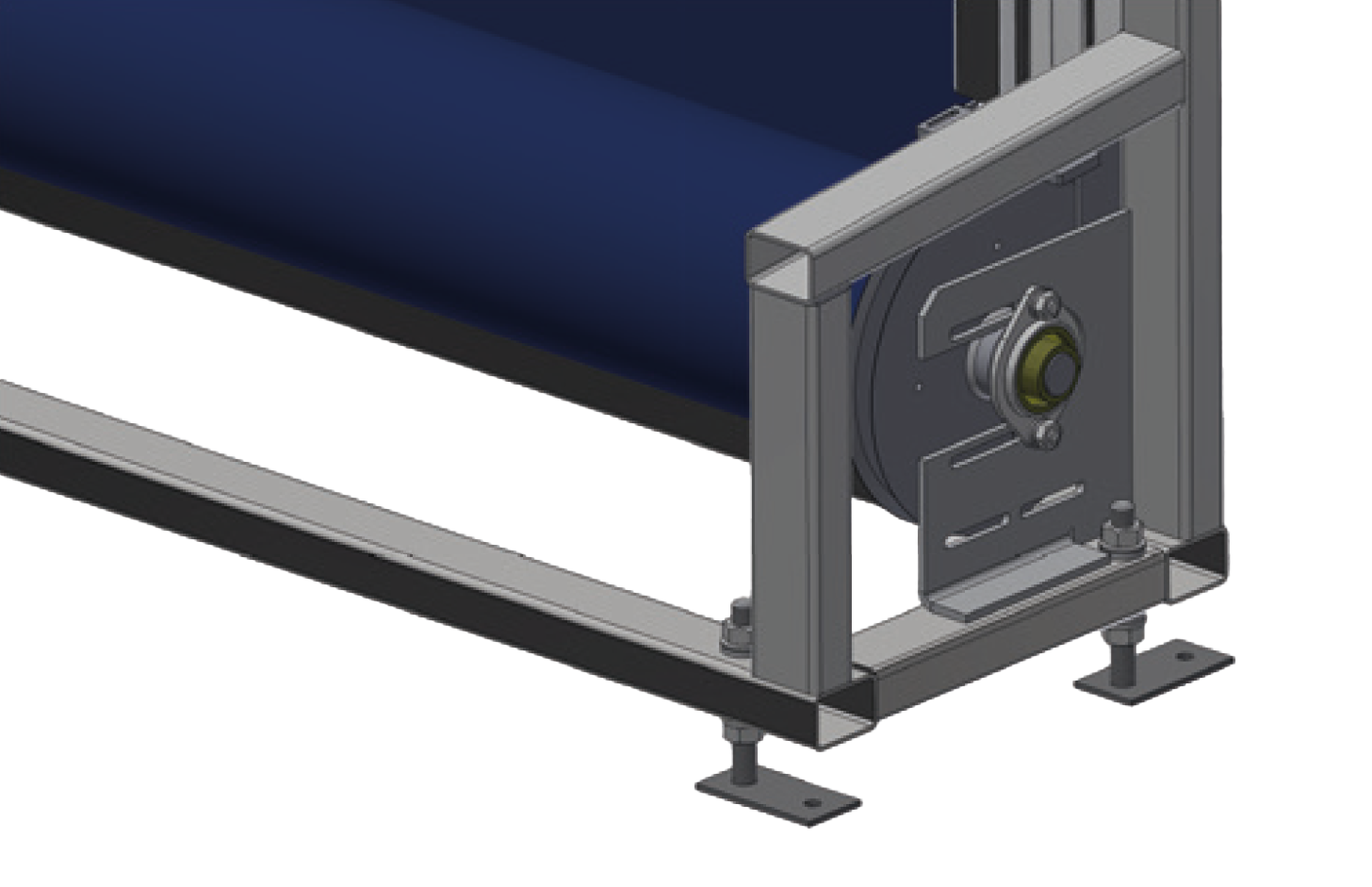

Levelling feet for floor levelling
Technical data
- Load change per year
- 1.000.000
Speed
- max. speed
- 1,8 m/s
- max. Cycles
- 7 pro min.
Gate sizes
- Width max.
- 6.000 mm
- Height max.
- 5.500 mm
- Use as a movable safety guard
- Functional safety Performance level d
- Emergency stop facility Performance level e
Important options
- AIDA control concept, customised to the requirements of the automotive industry
- Variable versions of the control concept
- Special hangings
- Protection by light grid
- Freestanding version
