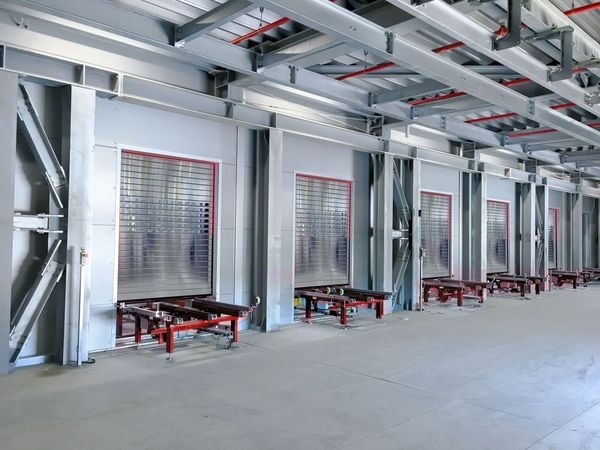

Innovative aluminium spiral door: modern design meets maximum functionality
Our high-speed spiral doors combine speed with excellent thermal insulation and are specially designed for use in outdoor areas with high frequency requirements. Compared to conventional sectional doors, our doors open significantly faster, making them the ideal choice for locations with high opening frequencies. The innovative door leaf guide and winding technology enable lightning-fast opening and closing times.
Unlike conventional doors, the door leaf is not wound onto a shaft but held in a spiral to save space. This contactless winding ensures quiet and virtually wear-free door operation.
Discover the future of external doors with our high-speed spiral doors and benefit from their efficiency and durability.
Industrial doors from the Alb for the whole world

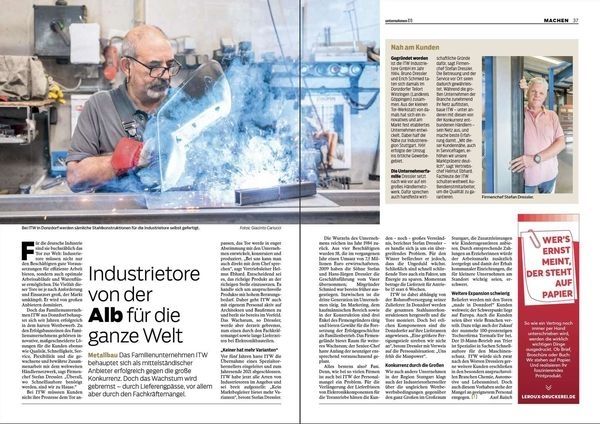

ITW Industrietore GmbH has made it into the October issue of ‘unternehmen[!] - Das Wirtschaftsmagazin’.
Company boss Stefan Dressler talks about the successful history of the family business, but also about current difficulties such as delivery bottlenecks and a shortage of skilled labour.
You can find the entire issue at the following link
https://www.swp-unternehmen.de/
Issue 84 | October 2022 | Page 36 - 37

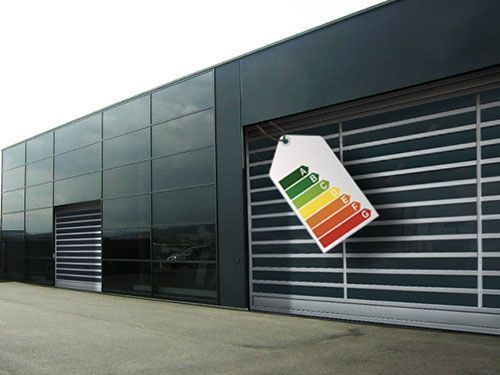

Energetic effects of U-value and opening speed
The insulation properties of a component can be read from the U-value. The higher the U-value, the worse the insulation effect, the lower the U-value, the better the insulation effect. One should think that the energy efficiency increases with the increasing U-value of a door in the outer wall.
What many do not know, however, is that the U-value is not the only factor that makes a door energy efficient. Energy losses in an industrial door arise through heat transmission (U-value), air permeability, power consumption and air flow.
The more often the gate opens and closes, the more important it becomes to reduce the air flow. The air flow is reduced by increasing the opening and closing speed of the industrial door in the building opening. In the optimal case, a high-speed spiral door is used for this.
A sectional door opens at approx. 20 cm / s, whereas a spiral door opens at approx. 250 cm / s. With a cycle of 50,000 openings and closings per year, this means a 293% higher energy loss when using a sectional door compared to a spiral door.
By using a high-speed spiral door, energy costs can be saved and sick days for employees can be reduced.
