Minirapid FA
Reliable, fast & safe
The machine safety gate specially developed for this application protects both man and machine without hindering the production process.

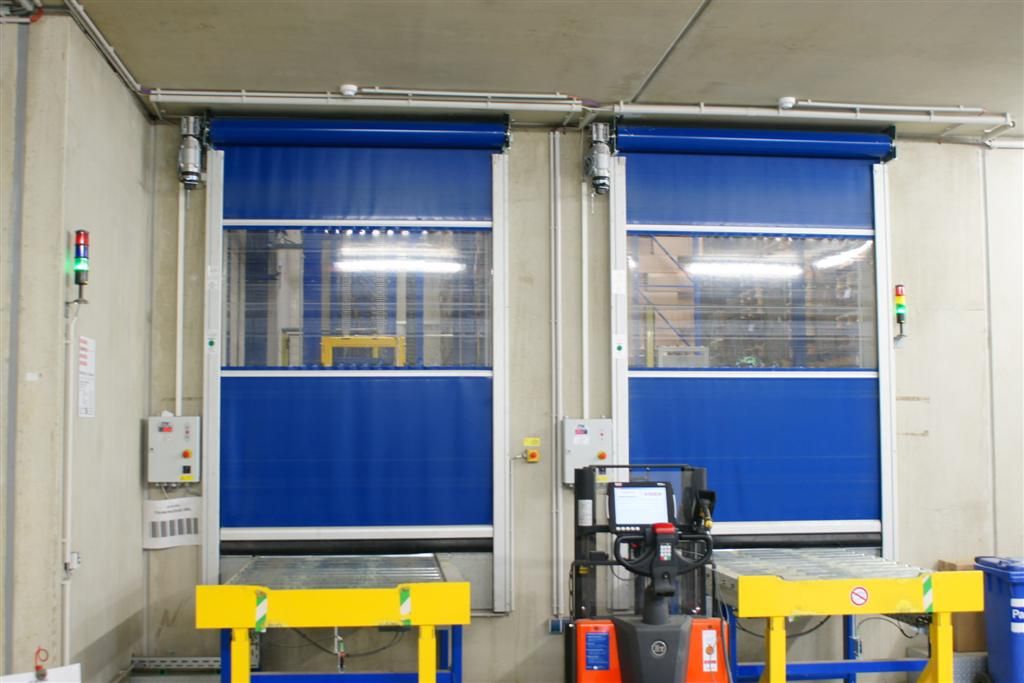

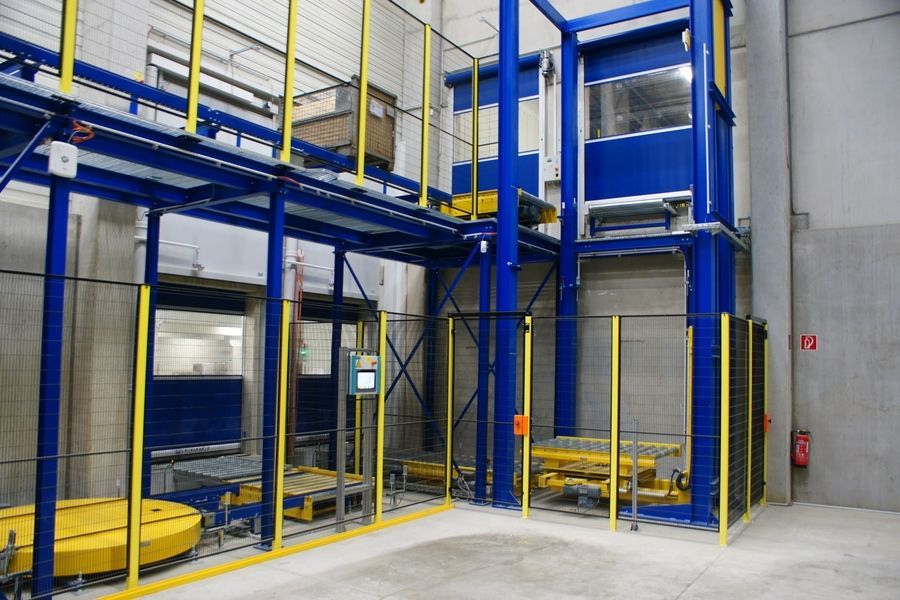

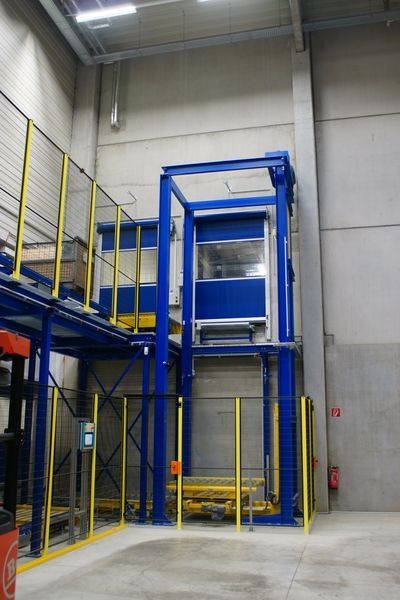

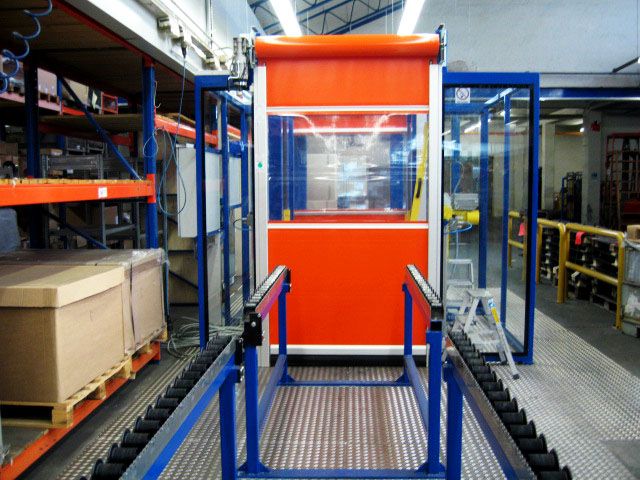

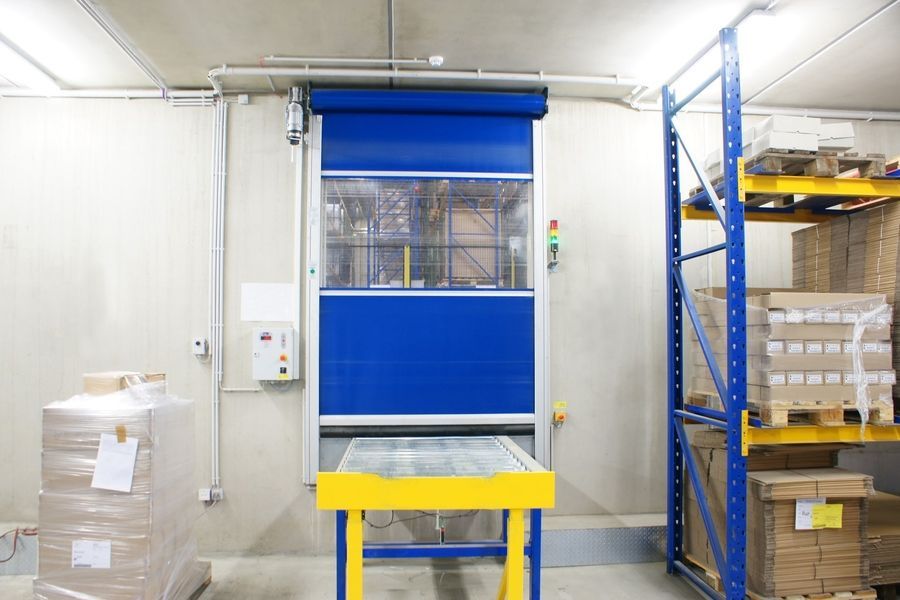

The short cycle times enable fast production steps. Our Minirapid is used between operating sections and storage areas within the conveyor system. There it serves as a barrier between the plant areas, as personal protection and as fall protection in front of the lifting shaft. It also keeps draughts out and helps to save energy at the same time.
Product features
- Opening speed up to 2.0 m/s
- Door size up to 5,000 mm x 5,000 mm
- Horizontal or vertical opening
- Low camber requirement
- Große Farbauswahl

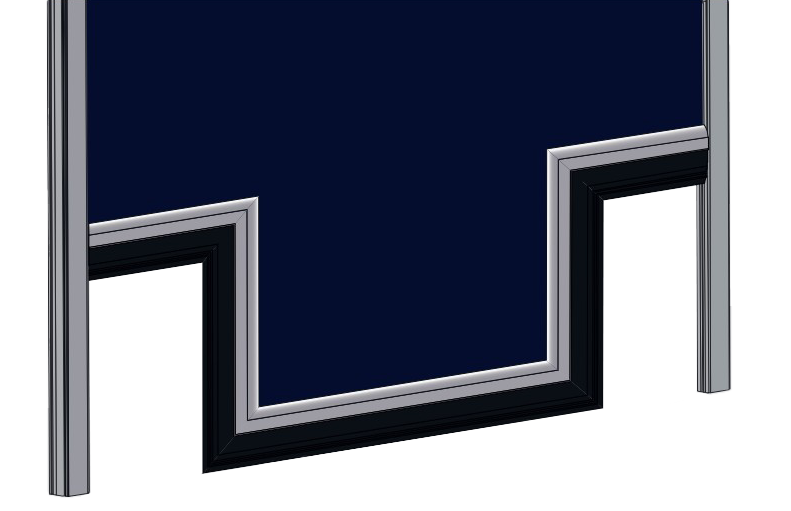

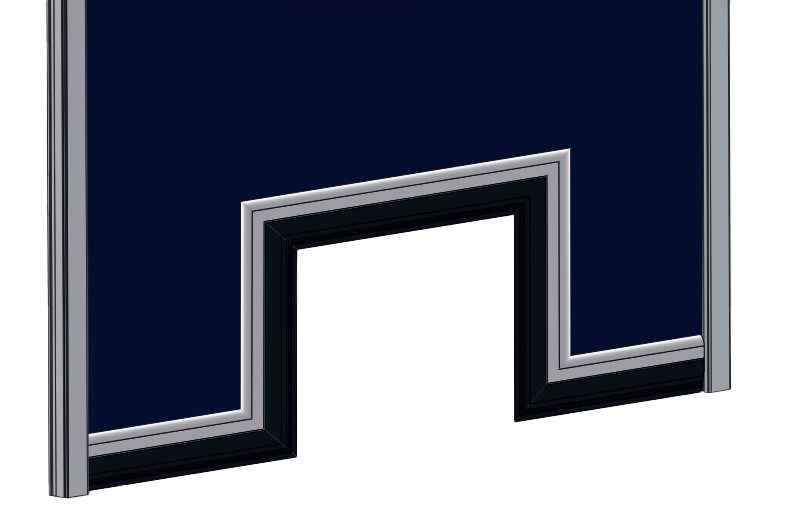

- Cut-outs possible
- Personnel restraint system
- Black main switch and emergency stop (optional)
The special features
Drive and bale panelling
Light grid

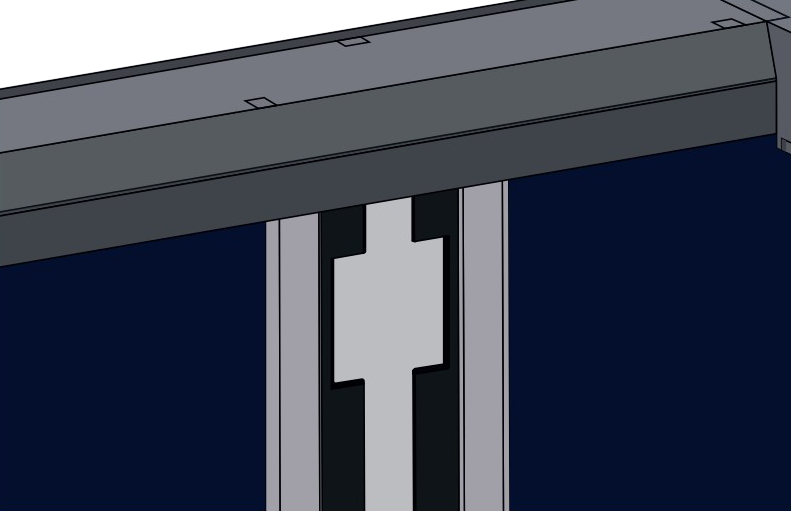

Horizontal door with cut-out in the rubber profile

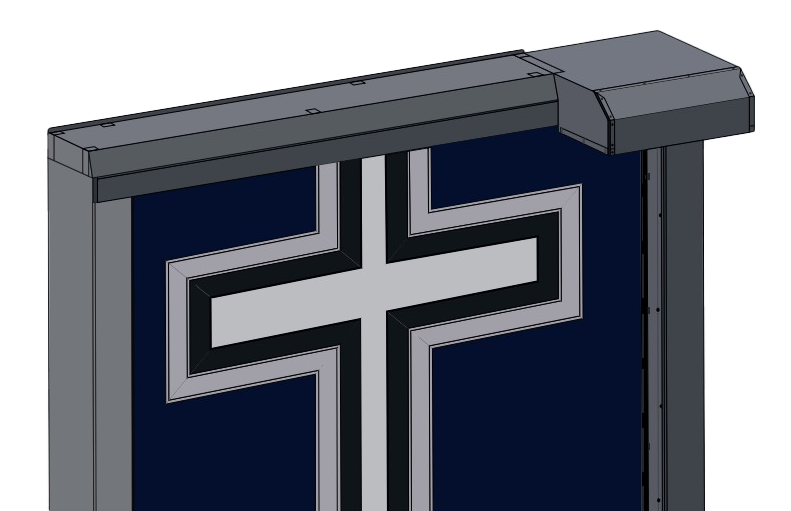

Horizontal door with large cut-out
Technical details
Size range
- Width (LDB) max.
- 5.000 mm
- Height (LDH) max.
- 5.000 mm
Special dimensions on request
Drive speed
Frequency-controlled drive
- Opening max.
- 2,0 m/s
- Closing max.
- 0,8 m/s
Control unit
- DR2100
Hanging
- available in various colors
Resistance to wind load
- Class 1
Power rating
- 230 V/50Hz, IP54 Drive
