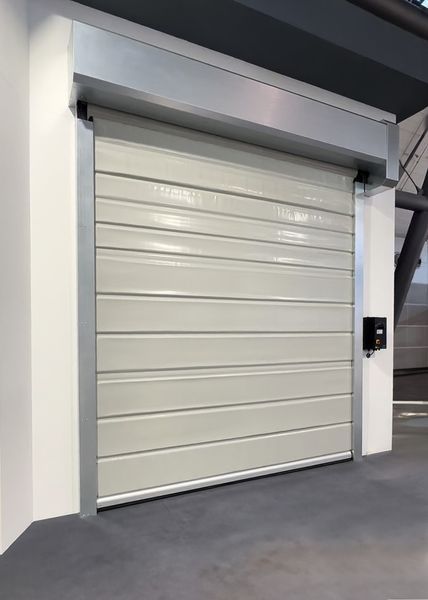

Minirapid ISO
Insulating and efficient
The MINIRAPID Iso is characterized by its outstanding insulating performance. The curtain pockets are filled with 20 mm thick PE foam, which effectively keeps the cold where it belongs. Thanks to an extremely low heat transfer coefficient of U ≤ 1.6 W/ (m²K), heat loss is minimized and energy costs are noticeably reduced.
In addition, the curtain is available in a wide range of colors, which enables individual adaptation to aesthetic requirements. The stable and self-supporting construction of the insulated high-speed door requires little lateral space. Simple installation is made possible by a well thought-out modular system, which ensures efficient installation and maintenance.
Product features
- Opening speed up to 2.5 m/s
- Door size up to 5.5 m x 5.5 m
- Resistance to wind load class 0 - 1
- Thermal transmittance coefficient U ≤1.6 W/ (m²K)
- Large selection of colours
- Double insulating curtain, filled with 20 mm thick PE foam
The special features

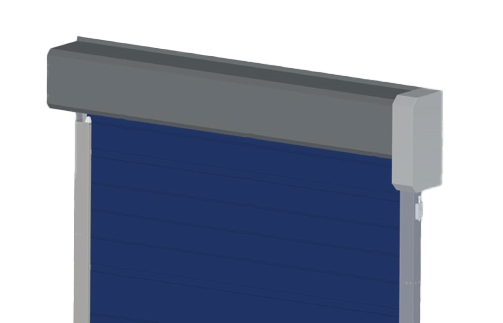

Drive and bale panelling

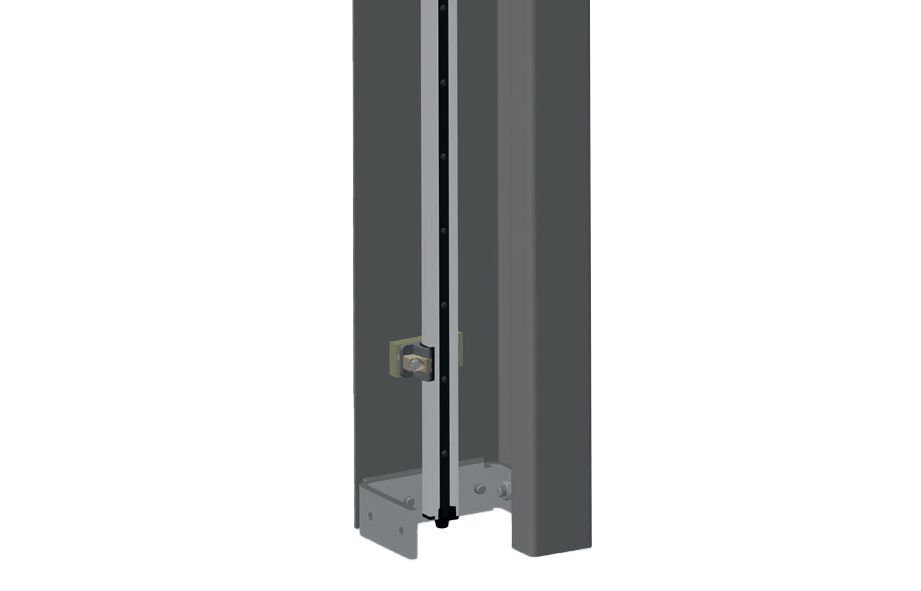

Light grid

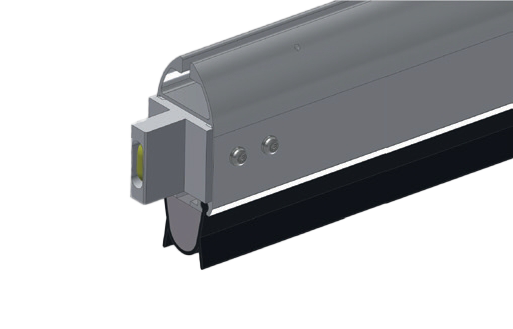

Anti-crash function
Technical details
Size range
- Width (LDB) max.
- 5.000 mm
- Height (LDH) max.
- 5.000 mm
Special dimensions on request
Drive speed
Frequency-controlled drive
- Opening max.
- 2,0 m/s
- Closing max.
- 0,8 m/s
Control unit
- DR2100
Hanging
- available in various colors or fully printed with motifs
Resistance to wind load
- Class 0 - 1
Power rating
- 230 V/50Hz, IP54 Drive
