Minirapid
Designed for use in cleanrooms, the food industry, pharmaceutical / chemical and wet areas.
The high-speed roll-up door of the Minirapid product line consists of a sophisticated modular system for a wide range of applications, such as clean rooms, supermarkets, food industry or machinery protection. The stable and self-supporting column construction requires small lateral space.
The tight-fitting fabric curtain not only provides good sealing but is flexible and versatile. Combine colors with vision strips or transparency up to door openings of 5,000 x 5,000 mm.
Product features
- Contactless protection through a lightgrid
- Crash protection
- Low lintel required
- Wide range of colours
- Internal door
- Low-cost solution
- Quick opening and closing (vertical)
Minirapid AL
The stable and self-supporting construction requires little space at the sides. The close-fitting fabric curtain not only ensures a high level of tightness, but is also flexible and versatile.
The high-speed roller shutter door from the Minirapid product line consists of a sophisticated modular system. This makes it possible to cover a wide range of applications.
The special features

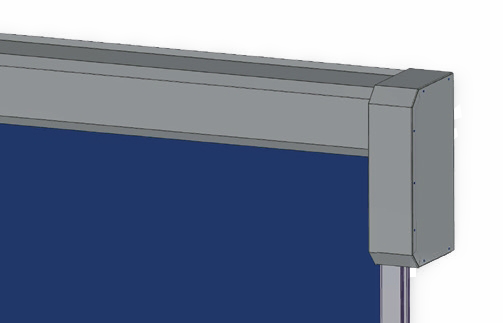

Drive and bale panelling

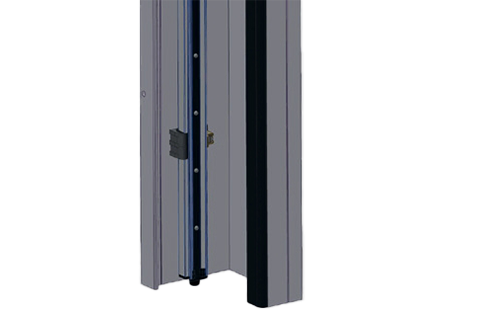

Light grid

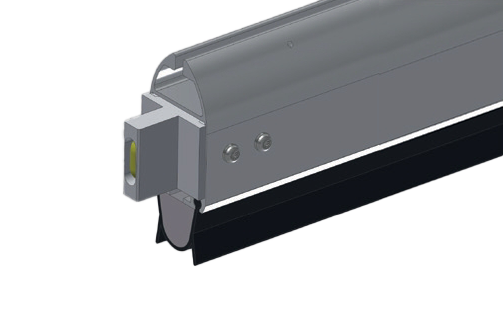

Anti-crash function

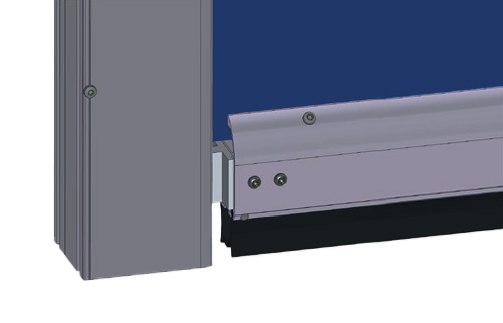

Crash in the lateral guide
Technical data
Size range
- Maximum height
- 5.000 mm
- Maximum width
- 5.000 mm
Speed
Integrated frequency inverter
- Opening speed
- 2,0 m/s
- Closing speed
- 0,8 m/s
Control
- Microprocessor control
Curtain
- PVC-coated fabric including a large viewing window
- Transparent PVC with vertical fabric strips
- Reinforcement profiles made of aluminum
Resistance to wind load (EN12424)
- Class 0
Minirapid CLEAN
Specially developed for cleanrooms to achieve an extremely high level of tightness.
Minirapid FOOD
Certified for the food sector. The optimum support for hygiene and refrigeration standards
Minirapid ISO
The MINIRAPID Iso is characterised by its outstanding insulating performance.
Minirapid FA
The machine safety gate specially developed for this application protects both man and machine without hindering the production process.
