Transsprint
High opening speed, with immediate availability of the complete opening height and compact door technology
The Transsprint opens at a speed of up to three meters per second. Due to the lateral opening of the door leaves, the entire passage height is immediately available. With the high speed and the immediate achievement of the clearance height, the movement of goods is even faster. This guarantees a trouble-free and safe flow of traffic and prevents long interruptions. The stainless steel version of the Transsprint meets the hygienic requirements of the food, chemical and pharmaceutical industries.
Product features
- External door
- Contactless protection through a lightgrid
- Crash protection
- Low lintel required
- Wide range of colours
- Large door openings
- Internal door
- Permanent curtain tension
- Quick opening and closing (horizontal)
- Immediately available passage height
Immediate full clearance height
The side opening of the door leaves enables the full door height to be made available immediately, thus ensuring fast and safe goods traffic. This guarantees a smooth and safe flow of traffic and prevents long interruptions.
Horizontal opening and closing allows cut-outs for pipes and conveyor belts, for example, which pass through the door. The door partition can also be asymmetrical or single-leaf.
The stainless steel version of the Transsprint fulfils the hygiene requirements of the food, chemical and pharmaceutical industries.
The special features

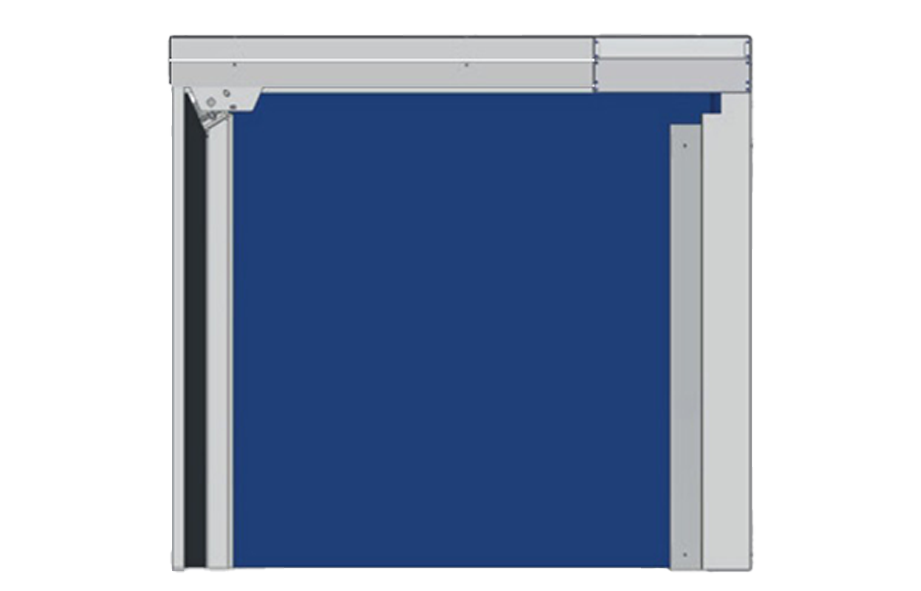

Single-wing

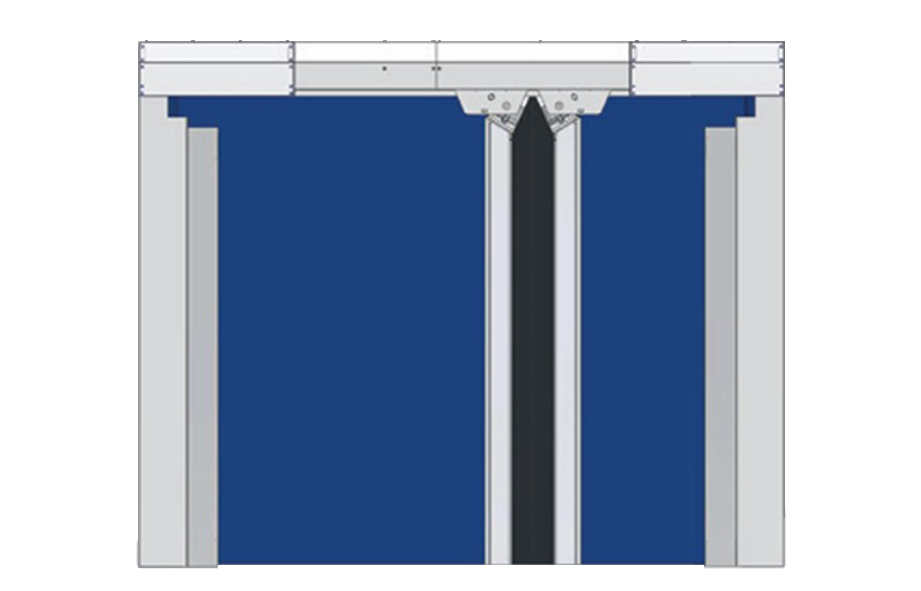

Asymmetrical, with two separate drives and controls

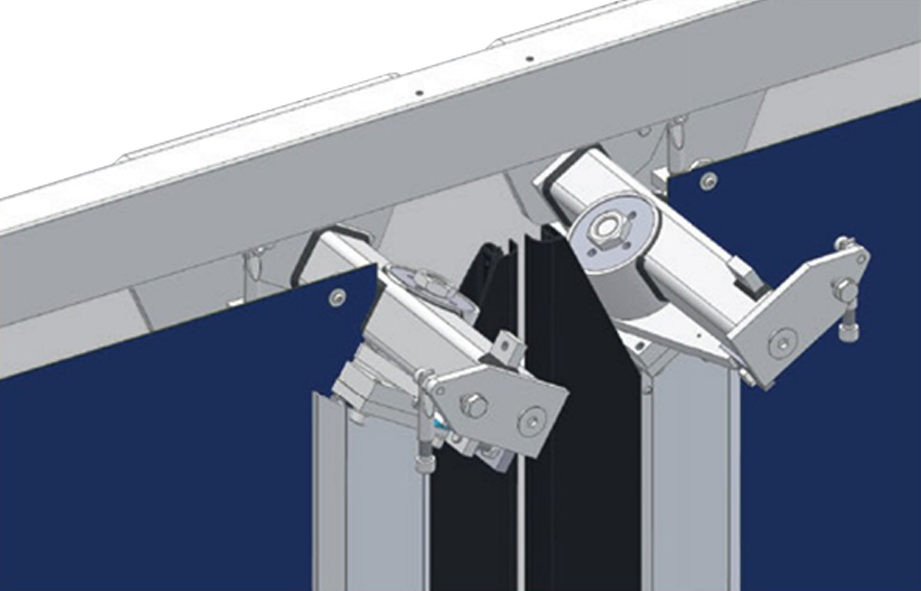

Crash protection

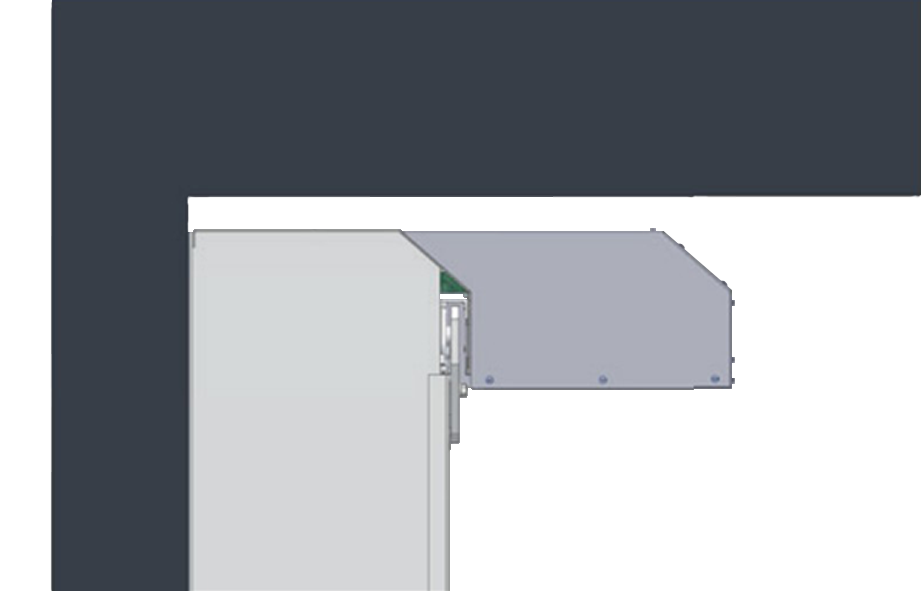

Lintel requirement 250 mm
Technical data
Size range
- Maximum height
- 6.000 mm
- Maximum width
- 6.000 mm
Special dimensions on request
Speed
Integrated frequency inverter
- Opening speed
- 3,0 m/s
- Closing speed
- 1,0 m/s
Control
- Microprocessor control
Curtain
- PVC-coated fabric including a large viewing window
Resistance to wind load (EN12424)
- Class 2
Anti-crash system
- The bars are latched back into the guide carriages after the crash
Transsprint TK
Our Transsptrint - TK with a reinforced PVC cover specially designed for use in deep-freeze environments.
Transsprint S
Horizontally opening high-speed door with hygienic properties like no other – the standard for the food industry.
Transsprint C
The side opening of the door leaves enables fast goods traffic and hygienic operation in the food, chemical and pharmaceutical industries.
Transsprint FLW
Vertical door for escape routes with surveillance in the escape direction.
